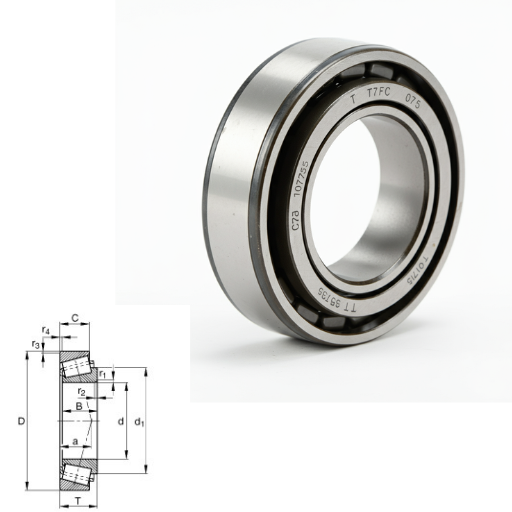

T7FC 075 T Series Taper Roller Bearings by Amigo, China, deliver exceptional load capacity and precision. Ideal for industrial applications, they ensure durability and reliability. Choose Amigo for premium bearings tailored to heavy-duty demands.
| T7FC075 interchange FAG T7FC075 | |
| T7FC075 cross reference FAG T7FC075 | |
| T7FC075 Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | T7FC075 |
| D | 150 mm |
|---|---|
| d | 75 mm |
| T | 42 mm |
| a | 51 mm |
| B | 38 mm |
| C | 29 mm |
| Y | 0,69 |
| e | 0,87 |
| m | 3,27 kg / Weight |
| Size (mm) | 75x150x42 |
| Width (mm) | 42 |
| nB | 3850 1/min / Reference speed |
| nG | 4500 1/min / Limiting speed |
| Y0 | 0,38 |
| Cr | 238000 N |
| d1 | 116,2 mm |
| C0r | 275000 N / Static load rating (radial) |
| Cur | 41500 N / Fatigue limit load, radial |
| Bearing number | T7FC075 |
| Db min | 143 mm |
| da max | 87 mm |
| db min | 96 mm |
| ra max | 3 mm |
| rb max | 3 mm |
| Da min | 114 mm |
| Da max | 136 mm |
| Cb min | 13 mm |
| Ca min | 6 mm |
| Bore Diameter (mm) | 75 |
| Outer Diameter (mm) | 150 |
| r1, 2 min | 3 mm |
| r3, 4 min | 3 mm |
