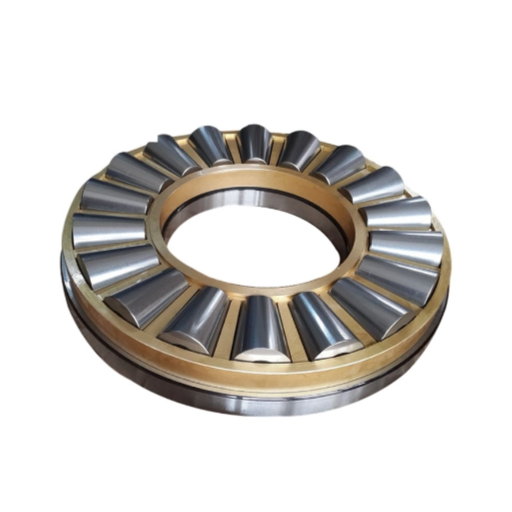

As the leading distributor in China for T Series Taper Roller Bearings, Amigo provides expertly crafted bearings that guarantee performance, longevity, and efficiency. Engineered for versatility and consistent reliability in aviation, construction, automotive, and industrial fields, these bearings are dependable under heavy loads. Count on Amigo for professional guidance and steadfast quality. Don’t wait! Upgrade today!
Widely used in automotive, industrial, construction, and renewable energy sectors.
| Item # | (d) Bore Diameter | (D) Outside Diameter | (T) Width | (C) Dynamic Load | (Co) Static Load | (Grease) Lubrication Speed | (Oil) Lubrication Speed | (e) Calculation Factors | (Y) Calculation Factor |
|---|---|---|---|---|---|---|---|---|---|
| T2ED 045 | 45 mm | 95.000 mm | 36.000 mm | 147000 N | 186000 N | 4000 r/min | 5300 r/min | 0.33 | 1.8 |
| T2EE 040 | 40 mm | 85.000 mm | 33 mm | 121000 N | 150000 N | 4500 r/min | 6000 r/min | 0.35 | 1.7 |
| T7FC 045 | 45 mm | 95.000 mm | 29.000 mm | 89700 N | 112000 N | 3600 r/min | 4800 r/min | 0.88 | 0.68 |
| T2ED 050 | 50 mm | 100 mm | 36.000 mm | 154000 N | 200000 N | 3800 r/min | 5000 r/min | 0.35 | 1.7 |
| T7FC 050 | 50 mm | 105 mm | 32.000 mm | 108000 N | 137000 N | 3200 r/min | 4300 r/min | 0.88 | 0.68 |
| T2ED 055 | 55 mm | 110.000 mm | 39.000 mm | 179000 N | 232000 N | 3400 r/min | 4500 r/min | 0.4 | 1.5 |
| T7FC 055 | 55 mm | 115.000 mm | 34.000 mm | 125000 N | 163000 N | 3000 r/min | 4000 r/min | 0.35 | 1.07 |
| T2EE 060 | 60 mm | 115.000 mm | 40.000 mm | 194000 N | 260000 N | 3200 r/min | 4300 r/min | 0.54 | 1.1 |
| T7FC 060 | 60 mm | 125.000 mm | 37.000 mm | 154000 N | 204000 N | 2600 r/min | 3600 r/min | 0.33 | 1.8 |
| T7FC 065 | 65.000 mm | 130.000 mm | 37.000 mm | 157000 N | 216000 N | 2400 r/min | 3400 r/min | 0.88 | 0.68 |
| T2ED 070 | 70.000 mm | 130.000 mm | 43.000 mm | 233000 N | 325000 N | 2800 r/min | 3800 r/min | 0.33 | 1.8 |
| HFC 070 | 70.000 mm | 140.000 mm | 39.000 mm | 176000 N | 240000 N | 2200 r/min | 3200 r/min | 0.88 | 0.68 |
| T7FC 075 | 75.000 mm | 150.000 mm | 42 mm | 201000 N | 280000 N | 2000 r/min | 3000 r/min | 0.88 | 0.68 |
| T4CB 100 | 100.000 mm | 145.000 mm | 24.000 mm | 125000 N | 190000 N | 2200 r/min | 3200 r/min | 0.48 | 1.25 |
| T2EE100 | 100.000 mm | 165.000 mm | 47.000 mm | 314000 N | 480000 N | 1900 r/min | 2800 r/min | 0.31 | 1.9 |
| T4CB120 | 120.000 mm | 170.000 mm | 27.000 mm | 157000 N | 250000 N | 1800 r/min | 2600 r/min | 0.48 | 1.25 |
| T4CB 140 | 140 mm | 195 mm | 29.000 mm | 194000 N | 325000 N | 1600 r/min | 2200 r/min | 0.5 | 1.2 |
| T4DB 150 | 150 mm | 210 mm | 32.000 mm | 233000 N | 390000 N | 1500 r/min | 2000 r/min | 0.46 | 1.3 |
| T4DB 160 | 160 mm | 220 mm | 32.000 mm | 242000 N | 415000 N | 1500 r/min | 2000 r/min | 0.48 | 1.25 |
| T4DB 170 | 170 mm | 230 mm | 32.000 mm | 251000 N | 440000 N | 1400 r/min | 1900 r/min | 0.46 | 1.3 |
| T4DB 200 | 200 mm | 270 mm | 37.000 mm | 330000 N | 600000 N | 1100 r/min | 1600 r/min | 0.48 | 1.25 |
| T2DC 220 | 220 mm | 285 mm | 41.000 mm | 396000 N | 830000 N | 1000 r/min | 1500 r/min | 0.31 | 1.9 |
| T4EB 240 | 240 mm | 320 mm | 42 mm | 429000 N | 815000 N | 900 r/min | 1300 r/min | 0.46 | 1.3 |
No posts found!
Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.
Improve your equipment with AMIGO’s T Series Taper Roller Bearings which offer exceptional durability and load capacity. Reduce machine downtime, lower operating costs, and further lean on dedicated support. Don’t hesitate—experience unparalleled performance in automotive, industrial, and construction applications now. You can start right away and check out AMIGO’s trusted solutions!
A: T Series bearings handle both radial and axial loads, offering high load capacity and durability.
A: They feature precision engineering, superior load tolerance, and reliable performance under heavy conditions.
A: Common in automotive drivetrains, industrial gearboxes, construction equipment, and wind turbines.
A: They provide unmatched durability, reduced downtime, and support for complex load conditions.
A: Yes, they are designed to maintain stability and efficiency at high speeds.
A: They are constructed with high-strength materials and designed to resist wear and impact.
A: Regular lubrication and inspection are recommended to ensure optimal performance and longevity.
A: They are available through authorized distributors or directly from manufacturers like AMIGO.
