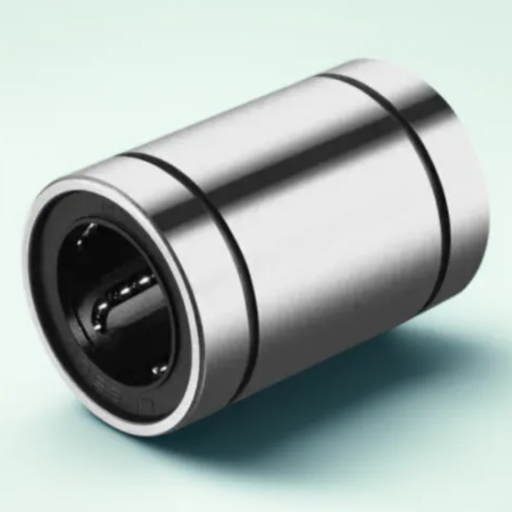

SM Metric Type Linear Motion Bearings

Amigo’s SM Metric Type Linear Motion Bearings are the epitome of precision engineering and durability, designed to meet the highest standards in linear motion systems. Crafted with meticulous attention to detail and utilizing state-of-the-art technology, these bearings ensure smooth and reliable operation across a wide range of industrial applications.

INSTANT QUOTE

Features and benefits

High Precision
Ensures accurate linear motion, ideal for demanding applications.
Durable Construction
Made from premium materials to withstand high loads and long-term use.
Low Friction
Minimizes resistance to improve energy efficiency and system performance.
Easy Installation
Designed for seamless integration into a variety of systems.

Applications

The SM Metric Type Linear Motion Bearings are highly versatile and find applications across a wide range of industries. These bearings are commonly used in precision machinery.

Industrial automation systems
Robotic equipment
CNC machinery
Medical devices

Explore the SM Metric Type Linear Motion Bearings Catalogue

Item #	(dr) Shaft Diameter	(D) Outer Diameter	Length	Dist. Btwn Retaining Rings	(W) Retaining Ring Width	(D1) Retaining Ring Diameter	(C) Dynamic Load	(Co) Static Load	Configuration	Seal Type
SM 6	6 mm	12 mm	19 mm	13.5 mm	1.1 mm	11.5 mm	21 kgf	27 kgf	Standard Type	No Seals
SM 6UU	6 mm	12 mm	19 mm	13.5 mm	1.1 mm	11.5 mm	21 kgf	27 kgf	Standard Type	Seals on Both Ends
SM 8S	8 mm	15 mm	17 mm	11.5 mm	1.1 mm	14.3 mm	18 kgf	22 kgf	Standard Type	No Seals
SM 8SUU	8 mm	15 mm	17 mm	11.5 mm	1.1 mm	14.3 mm	18 kgf	22 kgf	Standard Type	Seals on Both Ends
SM 8	8 mm	15 mm	24 mm	17.5 mm	1.1 mm	14.3 mm	28 kgf	40 kgf	Standard Type	No Seals
SM 8UU	8 mm	15 mm	24 mm	17.5 mm	1.1 mm	14.3 mm	28 kgf	40 kgf	Standard Type	Seals on Both Ends
SM 10	10 mm	19 mm	29 mm	22 mm	1.3 mm	18 mm	38 kgf	56 kgf	Standard Type	No Seals
SM 10UU	10 mm	19 mm	29 mm	22 mm	1.3 mm	18 mm	38 kgf	56 kgf	Standard Type	Seals on Both Ends
SM 12	12 mm	21 mm	30 mm	23 mm	1.3 mm	20 mm	42 kgf	61 kgf	Standard Type	No Seals
SM 12UU	12 mm	21 mm	30 mm	23 mm	1.3 mm	20 mm	42 kgf	61 kgf	Standard Type	Seals on Both Ends
SM 12-AJ	12 mm	21 mm	30 mm	23 mm	1.3 mm	20 mm	42 kgf	61 kgf	Adjustable Type	No Seals
SM 12UU-AJ	12 mm	21 mm	30 mm	23 mm	1.3 mm	20 mm	42 kgf	61 kgf	Adjustable Type	Seals on Both Ends
SM 12-OP	12 mm	21 mm	30 mm	23 mm	1.3 mm	20 mm	42 kgf	61 kgf	Open Type	No Seals
SM 12UU-OP	12 mm	21 mm	30 mm	23 mm	1.3 mm	20 mm	42 kgf	61 kgf	Open Type	Seals on Both Ends
SM 13	13 mm	23 mm	32 mm	23 mm	1.3 mm	22 mm	52 kgf	80 kgf	Standard Type	No Seals
SM 13UU	13 mm	23 mm	32 mm	23 mm	1.3 mm	22 mm	52 kgf	80 kgf	Standard Type	Seals on Both Ends
SM 13-AJ	13 mm	23 mm	32 mm	23 mm	1.3 mm	22 mm	52 kgf	80 kgf	Adjustable Type	No Seals
SM 13UU-AJ	13 mm	23 mm	32 mm	23 mm	1.3 mm	22 mm	52 kgf	80 kgf	Adjustable Type	Seals on Both Ends
SM 13-OP	13 mm	23 mm	32 mm	23 mm	1.3 mm	22 mm	52 kgf	80 kgf	Open Type	No Seals
SM 13UU-OP	13 mm	23 mm	32 mm	23 mm	1.3 mm	22 mm	52 kgf	80 kgf	Open Type	Seals on Both Ends
SM 16	16 mm	28 mm	37 mm	26.5 mm	1.6 mm	27 mm	79 kgf	120 kgf	Standard Type	No Seals
SM 16UU	16 mm	28 mm	37 mm	26.5 mm	1.6 mm	27 mm	79 kgf	120 kgf	Standard Type	Seals on Both Ends
SM 16-AJ	16 mm	28 mm	37 mm	26.5 mm	1.6 mm	27 mm	79 kgf	120 kgf	Adjustable Type	No Seals
SM 16UU-AJ	16 mm	28 mm	37 mm	26.5 mm	1.6 mm	27 mm	79 kgf	120 kgf	Adjustable Type	Seals on Both Ends
SM 16-OP	16 mm	28 mm	37 mm	26.5 mm	1.6 mm	27 mm	79 kgf	120 kgf	Open Type	No Seals
SM 16UU-OP	16 mm	28 mm	37 mm	26.5 mm	1.6 mm	27 mm	79 kgf	120 kgf	Open Type	Seals on Both Ends
SM 20	20 mm	32 mm	42 mm	30.5 mm	1.6 mm	30.5 mm	90 kgf	140 kgf	Standard Type	No Seals
SM 20UU	20 mm	32 mm	42 mm	30.5 mm	1.6 mm	30.5 mm	90 kgf	140 kgf	Standard Type	Seals on Both Ends
SM 20-AJ	20 mm	32 mm	42 mm	30.5 mm	1.6 mm	30.5 mm	90 kgf	140 kgf	Adjustable Type	No Seals
SM 20UU-AJ	20 mm	32 mm	42 mm	30.5 mm	1.6 mm	30.5 mm	90 kgf	140 kgf	Adjustable Type	Seals on Both Ends
SM 20-OP	20 mm	32 mm	42 mm	30.5 mm	1.6 mm	30.5 mm	90 kgf	140 kgf	Open Type	No Seals
SM 20UU-OP	20 mm	32 mm	42 mm	30.5 mm	1.6 mm	30.5 mm	90 kgf	140 kgf	Open Type	Seals on Both Ends
SM 25	25 mm	40.0 mm	59 mm	41 mm	1.85 mm	38 mm	100 kgf	160 kgf	Standard Type	No Seals
SM 25UU	25 mm	40.0 mm	59 mm	41 mm	1.85 mm	38 mm	100 kgf	160 kgf	Standard Type	Seals on Both Ends
SM 25-AJ	25 mm	40.0 mm	59 mm	41 mm	1.85 mm	38 mm	100 kgf	160 kgf	Adjustable Type	No Seals
SM 25UU-AJ	25 mm	40.0 mm	59 mm	41 mm	1.85 mm	38 mm	100 kgf	160 kgf	Adjustable Type	Seals on Both Ends
SM 25-OP	25 mm	40.0 mm	59 mm	41 mm	1.85 mm	38 mm	100 kgf	160 kgf	Open Type	No Seals
SM 25UU-OP	25 mm	40.0 mm	59 mm	41 mm	1.85 mm	38 mm	100 kgf	160 kgf	Open Type	Seals on Both Ends
SM 30	30 mm	45 mm	64 mm	44.5 mm	1.85 mm	43 mm	160 kgf	280 kgf	Standard Type	No Seals
SM 30UU	30 mm	45 mm	64 mm	44.5 mm	1.85 mm	43 mm	160 kgf	280 kgf	Standard Type	Seals on Both Ends
SM 30-AJ	30 mm	45 mm	64 mm	44.5 mm	1.85 mm	43 mm	160 kgf	280 kgf	Adjustable Type	No Seals
SM 30UU-AJ	30 mm	45 mm	64 mm	44.5 mm	1.85 mm	43 mm	160 kgf	280 kgf	Adjustable Type	Seals on Both Ends
SM 30-OP	30 mm	45 mm	64 mm	44.5 mm	1.85 mm	43 mm	160 kgf	280 kgf	Open Type	No Seals
SM 30UU-OP	30 mm	45 mm	64 mm	44.5 mm	1.85 mm	43 mm	160 kgf	280 kgf	Open Type	Seals on Both Ends
SM 35	35 mm	52.0 mm	70 mm	49.5 mm	2.1 mm	49 mm	170 kgf	320 kgf	Standard Type	No Seals
SM 35UU	35 mm	52.0 mm	70 mm	49.5 mm	2.1 mm	49 mm	170 kgf	320 kgf	Standard Type	Seals on Both Ends
SM 35-AJ	35 mm	52.0 mm	70 mm	49.5 mm	2.1 mm	49 mm	170 kgf	320 kgf	Adjustable Type	No Seals
SM 35UU-AJ	35 mm	52.0 mm	70 mm	49.5 mm	2.1 mm	49 mm	170 kgf	320 kgf	Adjustable Type	Seals on Both Ends
SM 35-OP	35 mm	52.0 mm	70 mm	49.5 mm	2.1 mm	49 mm	170 kgf	320 kgf	Open Type	No Seals
SM 35UU-OP	35 mm	52.0 mm	70 mm	49.5 mm	2.1 mm	49 mm	170 kgf	320 kgf	Open Type	Seals on Both Ends
SM 40	40 mm	60 mm	80 mm	60.5 mm	2.1 mm	57 mm	220 kgf	410 kgf	Standard Type	No Seals
SM 40UU	40 mm	60 mm	80 mm	60.5 mm	2.1 mm	57 mm	220 kgf	410 kgf	Standard Type	Seals on Both Ends
SM 40-AJ	40 mm	60 mm	80 mm	60.5 mm	2.1 mm	57 mm	220 kgf	410 kgf	Adjustable Type	No Seals
SM 40UU-AJ	40 mm	60 mm	80 mm	60.5 mm	2.1 mm	57 mm	220 kgf	410 kgf	Adjustable Type	Seals on Both Ends
SM 40-OP	40 mm	60 mm	80 mm	60.5 mm	2.1 mm	57 mm	220 kgf	410 kgf	Open Type	No Seals
SM 40UU-OP	40 mm	60 mm	80 mm	60.5 mm	2.1 mm	57 mm	220 kgf	410 kgf	Open Type	Seals on Both Ends
SM 50	50 mm	80 mm	100 mm	74 mm	2.6 mm	76.5 mm	390 kgf	810 kgf	Standard Type	No Seals
SM 50UU	50 mm	80 mm	100 mm	74 mm	2.6 mm	76.5 mm	390 kgf	810 kgf	Standard Type	Seals on Both Ends
SM 50-AJ	50 mm	80 mm	100 mm	74 mm	2.6 mm	76.5 mm	390 kgf	810 kgf	Adjustable Type	No Seals
SM 50UU-AJ	50 mm	80 mm	100 mm	74 mm	2.6 mm	76.5 mm	390 kgf	810 kgf	Adjustable Type	Seals on Both Ends
SM 50-OP	50 mm	80 mm	100 mm	74 mm	2.6 mm	76.5 mm	390 kgf	810 kgf	Open Type	No Seals
SM 50UU-OP	50 mm	80 mm	100 mm	74 mm	2.6 mm	76.5 mm	390 kgf	810 kgf	Open Type	Seals on Both Ends
SM 60	60 mm	90 mm	110 mm	85 mm	3.15 mm	86.5 mm	480 kgf	1,020 kgf	Standard Type	No Seals
SM 60UU	60 mm	90 mm	110 mm	85 mm	3.15 mm	86.5 mm	480 kgf	1,020 kgf	Standard Type	Seals on Both Ends
SM 60-AJ	60 mm	90 mm	110 mm	85 mm	3.15 mm	86.5 mm	480 kgf	1,020 kgf	Adjustable Type	No Seals
SM 60UU-AJ	60 mm	90 mm	110 mm	85 mm	3.15 mm	86.5 mm	480 kgf	1,020 kgf	Adjustable Type	Seals on Both Ends
SM 60-OP	60 mm	90 mm	110 mm	85 mm	3.15 mm	86.5 mm	480 kgf	1,020 kgf	Open Type	No Seals
SM 60UU-OP	60 mm	90 mm	110 mm	85 mm	3.15 mm	86.5 mm	480 kgf	1,020 kgf	Open Type	Seals on Both Ends
SM 80	80 mm	120 mm	140 mm	105.5 mm	4.15 mm	116 mm	750 kgf	1,630 kgf	Standard Type	No Seals
SM 80UU	80 mm	120 mm	140 mm	105.5 mm	4.15 mm	116 mm	750 kgf	1,630 kgf	Standard Type	Seals on Both Ends
SM 80-AJ	80 mm	120 mm	140 mm	105.5 mm	4.15 mm	116 mm	750 kgf	1,630 kgf	Adjustable Type	No Seals
SM 80UU-AJ	80 mm	120 mm	140 mm	105.5 mm	4.15 mm	116 mm	750 kgf	1,630 kgf	Adjustable Type	Seals on Both Ends
SM 80-OP	80 mm	120 mm	140 mm	105.5 mm	4.15 mm	116 mm	750 kgf	1,630 kgf	Open Type	No Seals
SM 80UU-OP	80 mm	120 mm	140 mm	105.5 mm	4.15 mm	116 mm	750 kgf	1,630 kgf	Open Type	Seals on Both Ends
SM 100	100 mm	150 mm	175 mm	125.5 mm	4.15 mm	145 mm	1,440 kgf	31550 kgf	Standard Type	No Seals
SM 100UU	100 mm	150 mm	175 mm	125.5 mm	4.15 mm	145 mm	1,440 kgf	31550 kgf	Standard Type	Seals on Both Ends
SM 100-AJ	100 mm	150 mm	175 mm	125.5 mm	4.15 mm	145 mm	1,440 kgf	31550 kgf	Adjustable Type	No Seals
SM 100UU-AJ	100 mm	150 mm	175 mm	125.5 mm	4.15 mm	145 mm	1,440 kgf	31550 kgf	Adjustable Type	Seals on Both Ends
SM 100-OP	100 mm	150 mm	175 mm	125.5 mm	4.15 mm	145 mm	1,440 kgf	31550 kgf	Open Type	No Seals
SM 100UU-OP	100 mm	150 mm	175 mm	125.5 mm	4.15 mm	145 mm	1,440 kgf	31550 kgf	Open Type	Seals on Both Ends
SM 120	120 mm	180 mm	200 mm	158.6 mm	4.15 mm	175 mm	1,670 kgf	4,080 kgf	Standard Type	No Seals
SM 120UU	120 mm	180 mm	200 mm	158.6 mm	4.15 mm	175 mm	1,670 kgf	4,080 kgf	Standard Type	Seals on Both Ends
SM 120-AJ	120 mm	180 mm	200 mm	158.6 mm	4.15 mm	175 mm	1,670 kgf	4,080 kgf	Adjustable Type	No Seals
SM 120UU-AJ	120 mm	180 mm	200 mm	158.6 mm	4.15 mm	175 mm	1,670 kgf	4,080 kgf	Adjustable Type	Seals on Both Ends
SM 120-OP	120 mm	180 mm	200 mm	158.6 mm	4.15 mm	175 mm	1,670 kgf	4,080 kgf	Open Type	No Seals
SM 120UU-OP	120 mm	180 mm	200 mm	158.6 mm	4.15 mm	175 mm	1,670 kgf	4,080 kgf	Open Type	Seals on Both Ends
SM 150	150 mm	210 mm	240 mm	170.6 mm	5.15 mm	204 mm	2,150 kgf	5,540 kgf	Standard Type	No Seals
SM 150UU	150 mm	210 mm	240 mm	170.6 mm	5.15 mm	204 mm	2,150 kgf	5,540 kgf	Standard Type	Seals on Both Ends
SM 150-AJ	150 mm	210 mm	240 mm	170.6 mm	5.15 mm	204 mm	2,150 kgf	5,540 kgf	Adjustable Type	No Seals
SM 150UU-AJ	150 mm	210 mm	240 mm	170.6 mm	5.15 mm	204 mm	2,150 kgf	5,540 kgf	Adjustable Type	Seals on Both Ends
SM 150-OP	150 mm	210 mm	240 mm	170.6 mm	5.15 mm	204 mm	2,150 kgf	5,540 kgf	Open Type	No Seals
SM 150UU-OP	150 mm	210 mm	240 mm	170.6 mm	5.15 mm	204 mm	2,150 kgf	5,540 kgf	Open Type	Seals on Both Ends

Product We Serve

Welcome to the Amigo Industrial Bearings

Explore More Bearings from AMIGO

No posts found!

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

What Are Some Common Types of Roller Bearings

Understanding the Different Types of Roller Bearings: A Comprehensive Guide

Smooth and easy functionality in numerous machines and mechanical systems is ensured by roller bearings which support friction. Obtaining the right type of roller bearing is imperative for long-lasting...

November 22, 2025

Understanding Roller Thrust Bearings and Their Importance

Discover the Different Types of Roller Bearings and Their Applications

From the automotive to aerospace and manufacturing industries, roller bearings are used in countless machines because they serve to reduce friction and carry loads. With so many varieties of...

November 21, 2025

What Methods Can I Use to Measure an Existing Ball Bearing

Ultimate Guide: How to Calculate Bearing Size with Precision Using Size Chart Measurements

It is said that great things come in small packages, and this holds for the world of machinery. If used properly, even the smallest of components, such as bearings...

November 21, 2025

How do tapered roller bearings compare to spherical roller bearings

Why Taper Roller Bearings Are Essential For Heavy-Duty Machinery Performance

Every part of heavy-duty machinery is vital to its seamless functioning and flawless performance. Taper roller bearings are some of the critical components that keep it working under extreme...

November 21, 2025

How do costs compare when choosing between spherical and cylindrical roller bearings

Understanding the Difference Between Spherical and Cylindrical Roller Bearings: Complete Comparison Guide

Without a doubt, roller bearings are some of the most important elements in the majority of machines and industries today. Choosing the proper type of roller bearings is critical...

November 21, 2025

When should you use cylindrical roller bearings in machinery

Understanding Cylindrical Roller Bearings: The Essential Guide to These High-Performance Rollers

Cylindrical roller bearing is one of the most pivotal parts of many machines and are well known for their capability to manage hefty radial loads and achieve high rotational...

November 21, 2025

What Is the Difference Between Plain Bearings and Roller Bearings?

Bearings are essential components in countless mechanical systems, facilitating smooth and efficient motion while minimizing friction between moving parts. Among the vast array of bearing designs, plain bearings and...

May 6, 2025

Understanding the Difference Between Roller Bearings: Cylindrical and Spherical Roller Bearing Insights

From various mechanical systems we can highlight that roller bearings are crucial parts which help smoothen the motion and reduces the friction of parts that are movable. Roller bearings...

April 30, 2025

Request a Bearing Quote from Us

Discover the reliability and precision of AMIGO SM Metric Type Linear Motion Bearings. Whether you’re looking to enhance system performance or ensure long-lasting durability, our bearings cater to your specific needs. Requesting a quote is simple and hassle-free. Reach out today to get expert advice, competitive pricing, and a solution tailored to your application.

Get in Touch Today

Frequently Ask Questions

Q: What are SM Metric Type Linear Motion Bearings used for?

A: SM Metric Type Linear Motion Bearings are used in a variety of applications requiring precise linear motion, such as industrial machinery, automation equipment, and medical devices.

Q: What materials are SM Metric Type Linear Motion Bearings made of?

A: These bearings are typically constructed from high-quality hardened steel or stainless steel, ensuring durability and resistance to wear and corrosion.

Q: What sizes are available for SM Metric Type Linear Motion Bearings?

A: SM Metric Type Linear Motion Bearings come in a range of sizes, accommodating different shaft diameters to suit various industrial and automation needs.

Q: How do SM Metric Type Linear Motion Bearings improve performance?

A: They provide smooth, precision guidance with minimal friction, which enhances efficiency, reduces wear, and extends the lifespan of machinery.

Q:What industries commonly use SM Metric Type Linear Motion Bearings?

A: Industries such as automotive, aerospace, electronics manufacturing, robotics, and healthcare often utilize these bearings for their reliability and precision.

Q: How are SM Metric Type Linear Motion Bearings maintained?

A: Regular cleaning and lubrication are essential for maintaining optimal performance and preventing debris buildup, which can impact their functionality.

Q: Can SM Metric Type Linear Motion Bearings handle heavy loads?

A: Yes, these bearings are designed to handle high loads depending on their size and specifications, making them suitable for heavy-duty industrial applications.

Q: Do SM Metric Type Linear Motion Bearings require special installation?

A: Proper alignment and secure mounting are critical during installation, but they are generally straightforward to install with standard equipment.

Roller Bearings

Ball Bearings

Super Precision Bearings

Linear Motion Bearings

Roller Bearings

Super Precision Bearings

Linear Motion Bearings

Ball Bearings

Bearings Catalog

SM Metric Type Linear Motion Bearings

Explore the SM Metric Type Linear Motion Bearings Catalogue

Welcome to the Amigo Industrial Bearings

Explore More Bearings from AMIGO

Latest Blog Posts

Request a Bearing Quote from Us

Frequently Ask Questions

Q: What are SM Metric Type Linear Motion Bearings used for?

Q: What materials are SM Metric Type Linear Motion Bearings made of?

Q: What sizes are available for SM Metric Type Linear Motion Bearings?

Q: How do SM Metric Type Linear Motion Bearings improve performance?

Q:What industries commonly use SM Metric Type Linear Motion Bearings?

Q: How are SM Metric Type Linear Motion Bearings maintained?

Q: Can SM Metric Type Linear Motion Bearings handle heavy loads?

Q: Do SM Metric Type Linear Motion Bearings require special installation?

Quick links

Our Bearings

©2026 agbearings.com COPYRIGHT ALL RIGHT RESERVED.

Contents
