SM 80-OP - SM Metric Type Linear Motion Bearings

Bearing Type	metal with bronze and graphite
Bearing number	AST850SM 8080
Bore Diameter (mm)	80
Outer Diameter (mm)	85

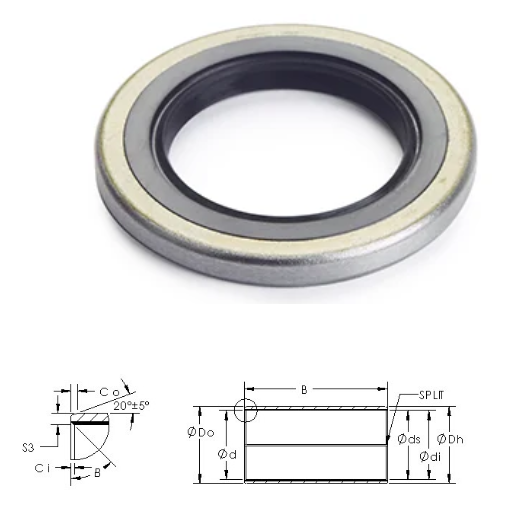

Wall Thickness (S3)	2.43
Average Clearance (Cd)	0.158
OD Chamfer Length (Co)	1.8
ID Chamfer Length (Ci)	0.6
Shaft Dia., Nominal (d)	80
ID Chamfer Angle (B deg.)	45
Bearing Length, Nominal (B)	80
Shaft Size (ds) - 80 +0 / -0.046	80 +0 / 0.046
Bearing Bore after Mounting (di)	80 +0.235 / +0.080
Bearing Outside Diameter, Nominal(Do)	85
Housing Bore Dia. (Dh) - 85 +0.035 / -0	85 +0.035 / 0
Bearing Length Tolerance (B tol.) - +0 / -0.40	0

Bearing Type

metal with bronze and graphite

Bearing number

AST850SM 8080

Bore Diameter (mm)

Outer Diameter (mm)

Wall Thickness (S3)

2.43

Average Clearance (Cd)

0.158

OD Chamfer Length (Co)

1.8

ID Chamfer Length (Ci)

0.6

Shaft Dia., Nominal (d)

ID Chamfer Angle (B deg.)

Bearing Length, Nominal (B)

Shaft Size (ds) - 80 +0 / -0.046

80 +0 / 0.046

Bearing Bore after Mounting (di)

80 +0.235 / +0.080

Bearing Outside Diameter, Nominal(Do)

Housing Bore Dia. (Dh) - 85 +0.035 / -0

85 +0.035 / 0

Bearing Length Tolerance (B tol.) - +0 / -0.40
