HM 88649/HM 88610 – Inch Measurement Taper Roller Bearings

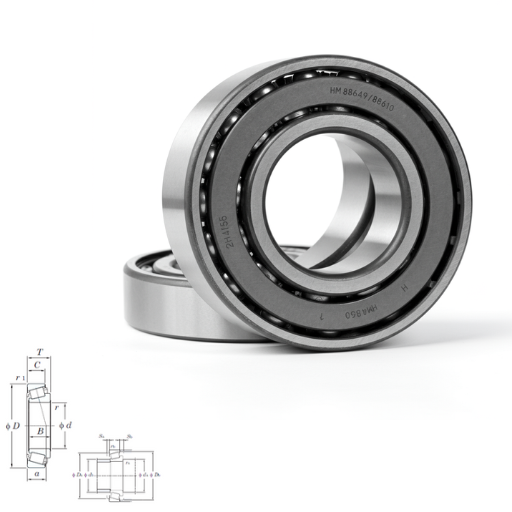

HM 88649HM 88610 Bearing

The HM 88649/HM 88610 inch taper roller bearings provide accurate and reliable performance in precision applications and are best suited for chrome steel and high-load working environments. These are imperative in the automotive and machinery industries. Get premium bearings from Amigo, a top-tier bearing supplier based in China with great serviccustomization andexceptionaloptionsfor bearing service.

HM88649/HM88610 interchange KOYO HM88649/HM88610
HM88649/HM88610 cross reference KOYO HM88649/HM88610
HM88649/HM88610 Equivalent bearing interchange guide:
Price:enquiry
Model Number:HM88649/HM88610

Explore the HM 88649/HM 88610 - Inch Measurement Taper Roller Bearings Catalogue

B25,4 mm
d34,925 mm
D72,233 mm
T25,4 mm
C19,842 mm
a20,7 mm
Db69 mm
Da60 mm
r min.2,4 mm
Weight0,486 Kg
db min42,5 mm
da min.48,5 mm
r2 min.2,4 mm
rb max.2,4 mm
ra max.2,4 mm
Size (mm)34.925x72.233x25.4
Width (mm)25,4
Bearing numberHM88649/HM88610
Bore Diameter (mm)34,925
Outer Diameter (mm)72,233
Calculation factor (e)0,55
(Oil) Lubrication Speed7600 r/min
Calculation factor (Y0)0,6
(Grease) Lubrication Speed5700 r/min
Basic dynamic load rating (C)66,9 kN
Basic static load rating (C0)87,4 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our HM 88649/HM 88610 Bearings

Get precision-engineered HM 88649/HM 88610 bearings from Amigo, China’s top supplier. Durable and perfect for high-load applications, they ensure reliable performance. Shop now for unbeatable quality and expert support. Don’t wait – upgrade your machinery with Amigo bearings today!

✅Precision Engineering: HM 88649/HM 88610 bearings offer exceptional precision for demanding tasks.
✅Durability: Built with durability to handle high-load applications reliably.
✅Top Supplier: Amigo is China’s trusted supplier for quality bearings.
✅Act Now: Upgrade your machinery today with superior Amigo bearings.
