HM 81649/HM 81610 – Inch Measurement Taper Roller Bearings

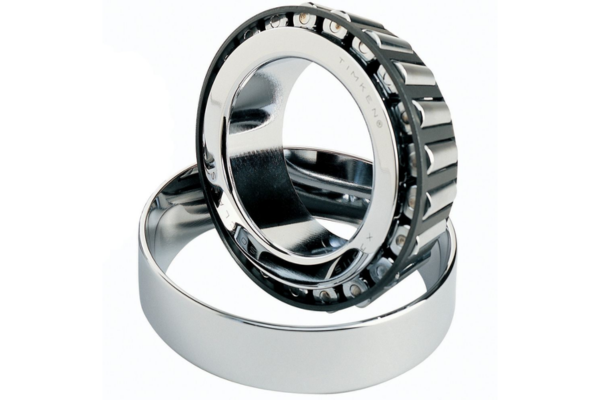

HM 81649HM 81610 Bearings

Amigo's HM 81649/HM 81610 Inch Taper Roller Bearings blends durability with precise load support. These strong roller bearings are well-suited for radial and axial loads, making them ideal for the automotive, construction, and machine industries. Achieve reliable performance in the heavy-duty applications with expertly engineered bearings from Amigo.

HM81649/HM81610 interchange KOYO HM81649/HM81610
HM81649/HM81610 cross reference KOYO HM81649/HM81610
HM81649/HM81610 Equivalent bearing interchange guide:
Price:enquiry
Model Number:HM81649/HM81610

Explore the HM 81649/HM 81610 - Inch Measurement Taper Roller Bearings Catalogue

B21 mm
d16 mm
D47 mm
T21 mm
C16 mm
a15 mm
Db43 mm
Da37,5 mm
r min.1 mm
Weight0,191 Kg
db min23 mm
da min.27,5 mm
r2 min.2 mm
rb max.2 mm
ra max.1 mm
Size (mm)16x47x21
Width (mm)21
Bearing numberHM81649/HM81610
Bore Diameter (mm)16
Outer Diameter (mm)47
Calculation factor (e)0,55
(Oil) Lubrication Speed13000 r/min
Calculation factor (Y0)0,6
(Grease) Lubrication Speed9800 r/min
Basic dynamic load rating (C)36,3 kN
Basic static load rating (C0)37,7 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose OurHM 81649/HM 81610 Bearings

AMIGO’s HM 81649/HM 81610 Bearings come with unmatched precision along with durability needed for reliable load handling. They are designed for radial and axial loads and excel in automotive, construction, and machinery applications. These expertly crafted taper roller bearings are ideal for heavy-duty operations. Take action now to ensure optimal performance!

✅Unmatched Precision: Engineered for superior accuracy in demanding environments.
✅Exceptional Durability: Built with high-quality materials to withstand heavy loads.
✅ Industrial Versatility: Well-suited for automotive, construction, and machinery applications.
✅Trusted Quality: Backed by Amigo’s renowned expertise in precision engineering.

HM 81649HM 81610 Bearings
