15106/15245 – Inch Measurement Taper Roller Bearings

1510615245 Bearing

Designed for exactness and tough use, 15106/15245 Inch Measurement Taper Roller Bearings are superior in performance during heavy-duty operations. They are made of strong materials to withstand harsh industrial environments. These bearings, available from Amigo—a top warranty supplier in China—will greatly improve your machines' operational efficiency and life span.

15106/15245 interchange KOYO 15106/15245
15106/15245 cross reference KOYO 15106/15245
15106/15245 Equivalent bearing interchange guide:
Price:enquiry
Model Number:15106/15245

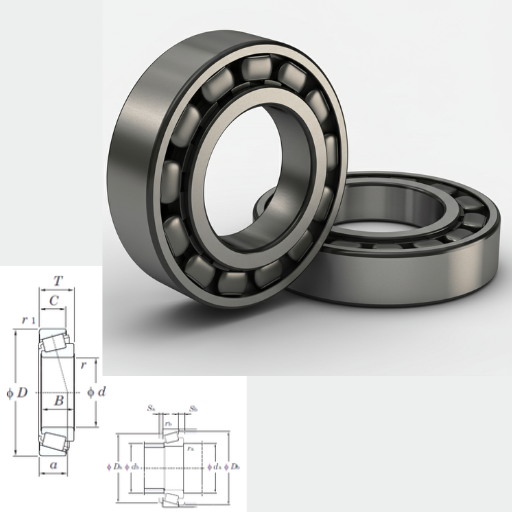

Explore the 15106/15245 - Inch Measurement Taper Roller Bearings Catalogue

B20,638 mm
d26,988 mm
D62 mm
T19,05 mm
C14,288 mm
a13,2 mm
Db58 mm
Da55 mm
r min.0,8 mm
Weight0,287 Kg
db min33 mm
da min.33,5 mm
r2 min.1,2 mm
rb max.1,2 mm
ra max.0,8 mm
Size (mm)26.988x62x19.05
Width (mm)19,05
Bearing number15106/15245
Bore Diameter (mm)26,988
Outer Diameter (mm)62
Calculation factor (e)0,35
(Oil) Lubrication Speed8600 r/min
Calculation factor (Y0)0,94
(Grease) Lubrication Speed6400 r/min
Basic dynamic load rating (C)44,6 kN
Basic static load rating (C0)50,7 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 15106/15245 Bearings

Upgrade your machinery with AMIGO’s 15106/15245 Bearings! Engineered for precision and durability, these heavy-duty bearings ensure reliable performance. Trust AMIGO, China’s top supplier, for high-quality products that maximize efficiency and lifespan. Don’t wait—order now to experience unmatched reliability for your industrial needs!

✅Precision Engineering: Built for exceptional accuracy to ensure optimal machinery performance.
✅Heavy-Duty Durability: Rugged design guarantees resilience in demanding industrial conditions.
✅Top Supplier: AMIGO, China’s trusted name, delivers unparalleled bearing quality.
✅Act Now: Order today for enhanced efficiency and reliable performance.
