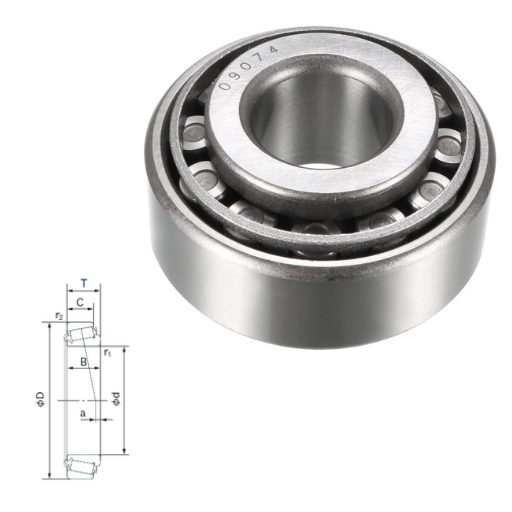

09074/09196 – Inch Measurement Taper Roller Bearings

0907409196 Bearing

Amigo is globally known for providing precision engineering products including 09074/09196 Taper Roller Bearings of remarkable quality. They are exceptionally robust, delivering unwavering dependability in performance. Ranging in Amigo’s industrial and automotive application area, these bearings facilitate effective and reliable performance. Select Amigo – a paramount supplier in China, they manufacture the most effective bearings used in machines and tools which improves productivity and increases the lifespan of the machinery.

09074/09196 interchange NACHI 09074/09196
09074/09196 cross reference NACHI 09074/09196
09074/09196 Equivalent bearing interchange guide:
Price:enquiry
Model Number:09074/09196

Explore the 09074/09196 - Inch Measurement Taper Roller Bearings Catalogue

D49.225 mm
T23.020 mm
B21.539 mm
C17.463 mm
a7.3 mm
Weight0,195 Kg
r1 min.1.3 mm
r2 min.1.5 mm
Size (mm)x49.225x21.539
Width (mm)21.539
Bearing number09074/09196
Outer Diameter (mm)49.225
Calculation factor (e)0.27
(Oil) Lubrication Speed11000 r/min
Calculation factor (Y0)1.2
(Grease) Lubrication Speed8500 r/min
Basic dynamic load rating (C)37500 kN
Basic static load rating (C0)37500 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 09074/09196 Bearings

Upgrade your machinery with AMIGO’s 09074/09196 Bearings. Built for precision and durability, they excel in industrial and automotive use, ensuring reliable performance. Choose AMIGO, a trusted supplier, for top-notch bearing solutions that enhance efficiency and extend machinery life. Act now and power your operations with unmatched performance!

✅Unmatched Precision: Ensure accurate performance for industrial and automotive machines.
✅Exceptional Durability: Crafted for longevity to withstand demanding conditions.
✅ Efficient Operations: Enhance machinery productivity and reliability effortlessly.
✅Trusted Supplier: Choose AMIGO for dependable, high-quality solutions.
