07100 S/07196 – Inch Measurement Taper Roller Bearings

07100 S07196 Bearing

Amigo provides the 07100 S/07196 Inch Measurement Taper Roller Bearings which are known for their accuracy and long-lasting nature. Their precision makes them ideal for automotive and industrial applications. Known throughout China as a reputable supplier, Amigo provides superior solutions designed to improve efficiency for your business with high-quality bearings.

07100S/07196 interchange KOYO 07100S/07196
07100S/07196 cross reference KOYO 07100S/07196
07100S/07196 Equivalent bearing interchange guide:
Price:enquiry
Model Number:07100S/07196

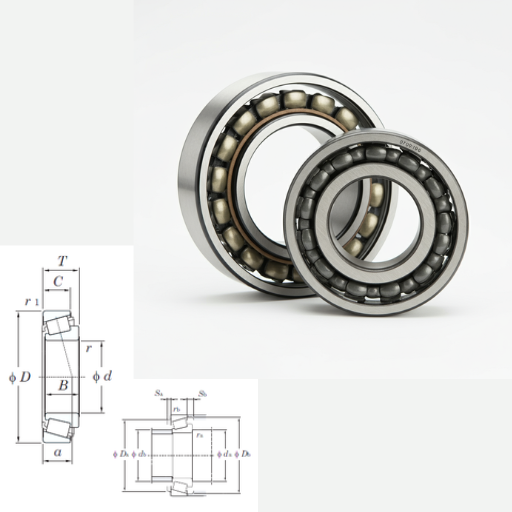

Explore the 07100 S/07196 - Inch Measurement Taper Roller Bearings Catalogue

B14,26 mm
d25,4 mm
D50,005 mm
T13,495 mm
C9,525 mm
a10,8 mm
Db47 mm
Da44,5 mm
r min.1,6 mm
Weight0,117 Kg
db min29,5 mm
da min.31,5 mm
r2 min.1 mm
rb max.1 mm
ra max.1,6 mm
Size (mm)25.4x50.005x13.495
Width (mm)13,495
Bearing number07100S/07196
Bore Diameter (mm)25,4
Outer Diameter (mm)50,005
Calculation factor (e)0,4
(Oil) Lubrication Speed11000 r/min
Calculation factor (Y0)0,82
(Grease) Lubrication Speed7900 r/min
Basic dynamic load rating (C)26,7 kN
Basic static load rating (C0)28,8 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 07100 S/07196 Bearings

Discover AMIGO’s 07100 S/07196 Taper Roller Bearings, engineered for unmatched precision and durability. Perfect for automotive and industrial applications, these bearings deliver reliable performance in demanding conditions. Choose AMIGO, a trusted supplier in China. Act now to explore or purchase and optimize your operations with superior bearing solutions!

✅Reliable Precision and Durability: AMIGO’s 07100 S/07196 Bearings ensure high precision and long-lasting quality.
✅Automotive and Industrial Use: Designed for optimal performance in demanding automotive and industrial environments.
✅Trusted Supplier: AMIGO is known for delivering exceptional bearing solutions nationwide.
✅Optimize Your Operations: Enhance your systems with superior bearings tailored to your needs.
