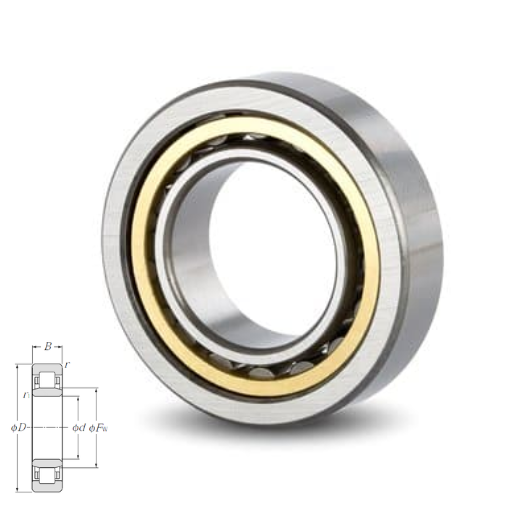

NU2252 – 2200 Series Cylindrical Roller Bearings

NU2252 bearings

Amigo's China location exports the high-end NU2252 and 2200 cylindrical roller bearing series. These bearings are meant to be multifaceted, long-lasting, and precise, and offer numerous business applications. Amigo’s advanced engineering and quality bearings guarantee absolute precision and seamless performance in operations that face intensive work conditions.

NU2252 interchange NTN NU2252
NU2252 cross reference NTN NU2252
NU2252 Equivalent bearing interchange guide:
Price:enquiry
Model Number:NU2252

Explore the NU2252 - 2200 Series Cylindrical Roller Bearings Catalogue

ParameterDetails
F320 mm
d260 mm
D480 mm
B130 mm
C130 mm
E420 mm
Fw320 mm
Weight104 Kg
ra max4 mm
db min323 mm
rs min5 mm
Da max460 mm
da max318 mm
da min280 mm
r min.5 mm
r1a max4 mm
r1s min5 mm
r1 min.5 mm
CategoryBearings
Size (mm)260x480x130
Inventory0
Nlim (oil)1,400 rpm
Width (mm)130
Product GroupB04144
Nlim (grease)1,200 rpm
Bearing numberNU2252
Static load, C02,930 kN
Dynamic load, C1,780 kN
Manufacturer NameNTN
Weight / Kilogram125
Bore Diameter (mm)260
Outer Diameter (mm)480
Minimum Buy QuantityN/A
Fatigue limit load, Cu241 kN
Mass (without HJ ring)125 kg
Radial clearance classCN
(Grease) Lubrication Speed1 200 r/min
Basic static load rating (C0)2 930 kN
Basic dynamic load rating (C)1 780 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our NU2252 Bearings

Amigo offers the world’s finest NU2252 bearings with unmatched accuracy, long life, and flexibility. These bearings are crafted for multifunctional industrial use and perform well even in harsh conditions. Amigo’s advanced engineering and the company’s unwavering dedication to quality ensure that these NU2252 bearings perform consistently and provide dependable answers, making them perfect to enhance operational productivity.

✅Exceptional Precision: NU2252 bearings are engineered for outstanding accuracy and consistent performance.
✅Superior Durability: Crafted with high-quality materials to ensure long-lasting functionality.
✅Versatile Applications: Ideal for a range of industries and challenging environments.
✅Advanced Engineering: State-of-the-art design ensures top-tier performance and dependability.

NU2252 bearings
