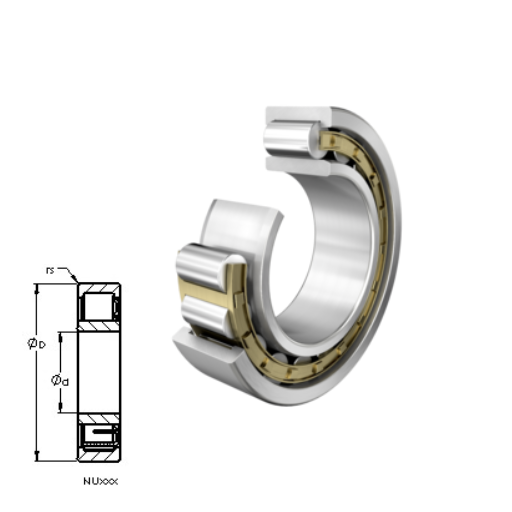

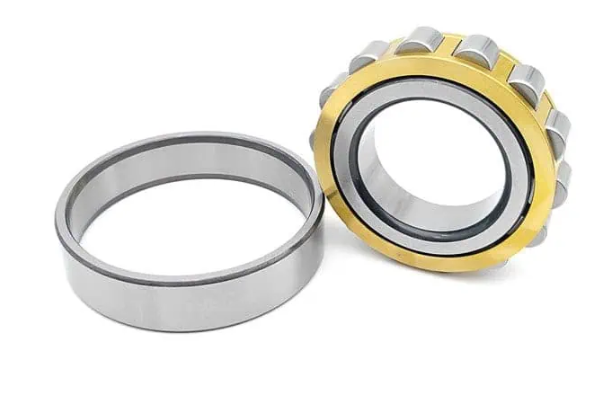

NU206 E – 200 Series Cylindrical Roller Bearings

NU206 E

Amigo is the leading distributor in China and offers the renowned NU206 E 200 Series Cylindrical Roller Bearings. These bearings increase the productivity of businesses due to their precision, high load capacity, and outstanding durability, especially in industrial work. They are designed to provide dependable performance under harsh conditions. Rely on Amigo's exceptional skill to provide custom-tailored strategies to enhance your operations using advanced technology and quality workmanship.

NU206 E interchange AST NU206 E
NU206 E cross reference AST NU206 E
NU206 E Equivalent bearing interchange guide:
Price:enquiry
Model Number:NU206 E

Explore the NU206 E - 200 Series Cylindrical Roller Bearings Catalogue

Material52100 Chrome steel, or equivalent
Size (mm)30x62x16
PrecisionRBEC 1
Width (B)16
Weight (g)204
Width (mm)16
Bearing TypeNU
Bore Dia (d)30
Outer Dia (D)62
Bearing numberNU206 E
Radius (min) (rs)1
Bore Diameter (mm)30
Standard ClearanceC0
Outer Diameter (mm)62
Static Load Rating (Cor)37,900
Dynamic Load Rating (Cr)39,700
Max Speed (Oil) (X1000 RPM)13
Max Speed (Grease) (X00 RPM)10
Max. Shaft Shoulder Dia. Inner (Li)37.5
Min. Housing Shoulder Dia., Outer (Lo)55.5

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our NU206 E Bearings

Transform your operations with AMIGO’s reliable and high-capacity NU206 E Bearings. Precision and optimal functioning are guaranteed by these specially designed bearings, making them dependable in performing rigorous and challenging industrial tasks. Rely on AMIGO for customized strategies that improve productivity while providing sustainable benefits. Experience remarkable innovation and quality today with AMIGO’s unmatched mastery.

✅ Enhanced Durability: Reliable bearings built to handle challenging industrial demands.
✅ High Load Capacity: Expertly designed to support heavy-duty operations.
✅ Precision Performance: Engineered for accuracy and optimal mechanical efficiency.
✅ Operational Reliability: Ensures uninterrupted performance in critical applications.
