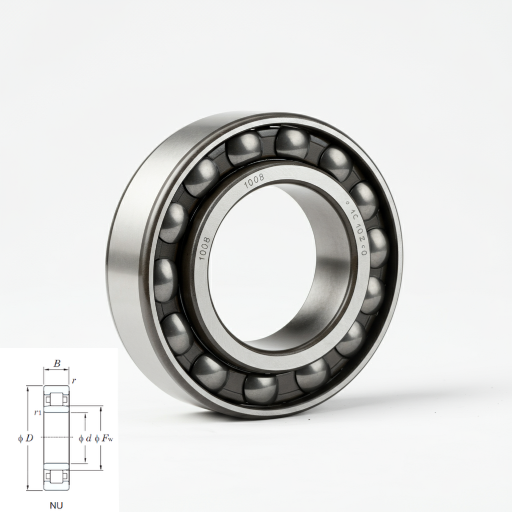

NU1008 – 1000 Series Cylindrical Roller Bearings

NU1008 Bearings

Grinding reliability and efficiency in diverse industrial applications is no cakewalk. Trust Amigo, the Chinese suppliers of NU1008 Cylindrical Roller Bearings. They offer unmatched quality and reliability with exquisite precision crafted to guarantee durability. Further improving productivity, these high-performance bearings are dependable in demanding environments, guaranteeing industry-optimized output. Save time and money with problem-solving solutions.

NU1008 interchange KOYO NU1008
NU1008 cross reference KOYO NU1008
NU1008 Equivalent bearing interchange guide:
Price:enquiry
Model Number:NU1008

Explore the NU1008 - 1000 Series Cylindrical Roller Bearings Catalogue

ParameterDetails
C15 mm
d40 mm
D68 mm
B15 mm
B2-
Cu3.1
Ew-
d1-
B1-
Cr31.2
Fw47 mm
C0r25.7
r min.1 mm
Weight0.223 Kg
r(min)1
da(min)-
db(min)44
db(max)46
dc(min)-
r1(min)0.6
dd(min)-
Da(max)63
Db(max)-
Db(min)-
r1 min.0.6 mm
ra(max)1
rb(max)0.6
Oil lub.12000
Size (mm)40x68x15
Width (mm)15
Grease lub.10000
Bearing No.NU1008
Bearing numberNU1008
(Refer.)Mass(kg)0.223
Bore Diameter (mm)40
Outer Diameter (mm)68
(Grease) Lubrication Speed10000 r/min
Basic static load rating (C0)25.7 kN
Basic dynamic load rating (C)24.9 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our NU1008 Bearings

Amigo’s NU1008 Cylindrical Roller Bearings are constructed for efficiency, durability, and precision. They serve a wide array of industrial applications which improves dependability and performance. Amigo provides uncompromised quality and expertise for solutions in demanding environments. These high performance bearings are engineered to deliver dependable service. Elevate your operations with the trust Amigo offers for industrial requirements.

✅ Precision Engineering: NU1008 Bearings deliver unmatched precision for optimal performance.
✅ Durability: Built to last, ensuring long-term reliability.
✅ Industrial Versatility: Designed for a wide range of demanding applications.
✅ High Performance: Enhances operational efficiency and productivity.
