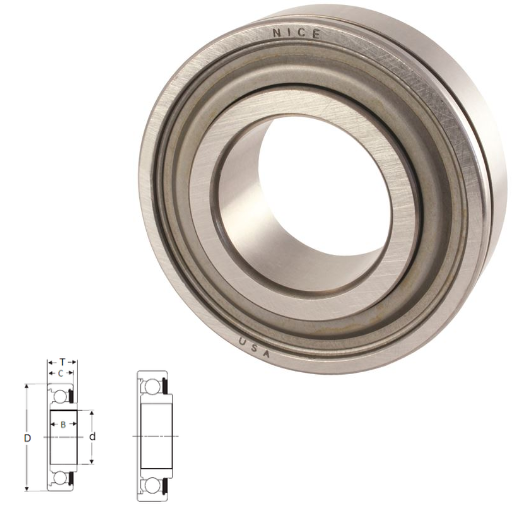

7514 DLG – NICE Precision 7500 Series Inch-Style Ground Ball Bearings

7512 DLG

7514 DLG—NICE Precision 7500 Series Inch-Style Ground Ball Bearings provide precision, durability, and reliability for even the most demanding industrial tasks. These bearings are custom-built with advanced materials and technological enhancements to ensure seamless, consistent traction within the range of different loads. These bearings have durable construction and excellent operational efficiency like all industrial devices. 7514 DLG Bearings guarantees highly responsive functionality and consistent operations regardless of business requirements.

87500 interchange NTN 87500
87500 cross reference NTN 87500
87500 Equivalent bearing interchange guide:
Price:enquiry
Model Number:87500

Explore the 7514 DLG - NICE Precision 7500 Series Inch-Style Ground Ball Bearings Catalogue

D30,000 mm
d10,000 mm
B12,700 mm
C12,700 mm
NounBearing
Bore0.394 Inch | 10 Millimeter
UNSPSC31171504
series:87
CategorySingle Row Ball Bearing
Snap RingNo
Size (mm)10x30x12.700
Enclosure1 Seal-1 Metal Shield
Inventory0
bore type:Round
Width (mm)12,700
Weight / LBS0.077
Product GroupB00308
closure type:One Seal/One Shield
Cage MaterialSteel
Inch - MetricMetric
Bearing number87500
bore diameter:10 mm
overall width:12.7 mm
fillet radius:0.6 mm
cage material:Steel
Keyword StringBall
Other FeaturesDeep Groove | Felt Seal | Shell Alvania Prelubricated
Enclosure TypeContact Seal
finish/coating:Uncoated
Rolling ElementBall Bearing
Precision ClassABEC 1 | ISO P0
Manufacturer URLhttp://www.ntnamerica.com
Long Description10MM Bore; 30MM Outside Diameter; 9MM Outer Race Width; 1 Seal-1 Metal Shield; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; Wide Inner Ring Internal Special Features; C0-Medium Intern
Inner Race Width0.48 Inch | 12.2 Millimeter
Outside Diameter1.181 Inch | 30 Millimeter
Outer Race Width0.354 Inch | 9 Millimeter
outer ring width:9 mm
inner ring width:12.192 mm
Manufacturer NameNTN
bearing material:High Carbon Chrome Steel
Weight / US pound0.01
outside diameter:30 mm
Weight / Kilogram0.035
precision rating:ISO Class 0
Bore Diameter (mm)10,000
Internal ClearanceC0-Medium
snap ring included:Without Snap Ring
internal clearance:CN
Outer Diameter (mm)30,000
Minimum Buy QuantityN/A
row type & fill slot:Single Row Non-Fill Slot
maximum rpm (grease):18000 rpm
static load capacity:2400 N
Harmonized Tariff Code8482.10.50.68
dynamic load capacity:5100 N
Manufacturer Item Number87500
Internal Special FeaturesWide Inner Ring
manufacturer product page:Click here
operating temperature range:-40 to 120 oC
Maximum Capacity / Filling SlotNo

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 7514 DLG Bearings

AMIGO offers 7514 DLG Bearings, which provide precision and reliable performance while being durable for demanding applications. These Inch-Style Ground Ball Bearings are made from the best materials that guarantee smooth and consistent functioning even under changing loads. They are manufactured for strength and efficiency and comply with harsh industrial standards, ensuring consistent reliability. Rely on AMIGO’s 7514 DLG Bearings for unmatched functionality to satisfy different operational demands.

Precision Performance: Provides smooth, accurate operation in demanding industrial settings.
Durable Design: Engineered to withstand heavy and variable loads.
High-Quality Materials: Crafted for consistent reliability and long-term strength.
Versatile Functionality: Tailored to meet diverse operational requirements.

NICE Precision 7500 Series Inch-Style Ground Ball Bearings
