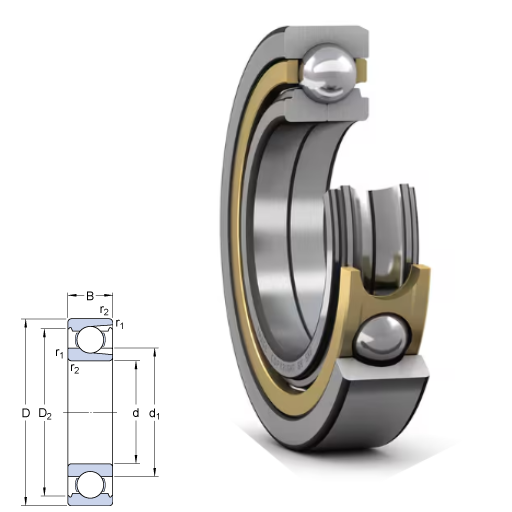

308 – Maximum Capacity Series Deep Groove Radial Ball Bearings

308

The 308—Maximum Capacity Series Deep Groove Radial Ball Bearings provide outstanding radial construction, efficient operation, and radial durability. They are built to bear substantial loads, which enhances productivity during rigorous operations while also minimizing downtime and maintenance. The industrial requirements of 308 series bearings, with their robust design and exceptional load bearing capability, require dependability.

308 interchange SKF 308
308 cross reference SKF 308
308 Equivalent bearing interchange guide:
Price:enquiry
Model Number:308

Explore the 308 - Maximum Capacity Series Deep Groove Radial Ball Bearings Catalogue

D90 mm
d40 mm
B23 mm
NounBearing
Bore1.575 Inch | 40 Millimeter
UNSPSC31171504
series:30
CategorySingle Row Ball Bearing
Inventory0
EnclosureOpen
Size (mm)90x40x23
Snap RingNo
Width (mm)23
bore type:Round
Weight / LBS1.42
Mass bearing0.64 kg
maximum rpm:8500 RPM
Inch - MetricMetric
Product GroupB00308
Cage MaterialSteel
closure type:Open
D277.7 mm
d156.11 mm
Keyword StringBall
bore diameter:40 mm
cage material:Steel
fillet radius:1.5 mm
overall width:23 mm
Bearing number308
Limiting speed8500 r/min
Rolling ElementBall Bearing
finish/coating:Uncoated
Precision ClassABEC 1 | ISO P0
Reference speed14000 r/min
Manufacturer URLhttp://www.skf.com
Long Description40MM Bore; 90MM Outside Diameter; 23MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; Yes Filling Slot; No Snap Ring; No Internal Special Features
Outer Race Width0.906 Inch | 23 Millimeter
Outside Diameter3.543 Inch | 90 Millimeter
precision rating:ABEC 3 (ISO Class 6)
outside diameter:90 mm
outer ring width:23 mm
Manufacturer NameSKF
Weight / Kilogram0.65
da?min.49 mm
Da?max.81 mm
Bore Diameter (mm)90
Internal ClearanceC0-Medium
ra?max.1.5 mm
internal clearance:C0
Outer Diameter (mm)40
snap ring included:Without Snap Ring
da?- min.49 mm
r1,2?min.1.5 mm
ra?- max.1.5 mm
Da?- max.81 mm
Minimum Buy QuantityN/A
static load capacity:36 kN
row type & fill slot:Single Row Filling Slot
r1,2?- min.1.5 mm
dynamic load capacity:45.7 kN
Harmonized Tariff Code8482.10.50.68
Manufacturer Item Number308
Internal Special FeaturesNo
thrust application warning:This product can not be used in Thrust Applications
Basic dynamic load rating C45.7 kN
Basic dynamic load rating - C45.7 kN
Maximum Capacity / Filling SlotYes
Fatigue load limit Pu1.53 kN
Calculation factor kr0.05
Fatigue load limit - Pu1.5 kN
Calculation factor - kr0.05
Basic static load rating C036 kN
Basic static load rating - C036 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 308 Bearings

AMIGO 308 Bearings stand out in their ability to efficiently and effectively perform industrial applications owing to their remarkable load-bearing capabilities. They are optimally designed for heavy-duty use due to increased productivity while maintaining a reduction in maintenance and downtime. AMIGO 308 Bearings will reliably stand the test of time owing to their robust design, which ensures constant, trustworthy operation, making them ideal for unstable environments.

Superior Durability: AMIGO 308 Bearings are built to withstand demanding conditions, offering long-lasting performance.
Enhanced Productivity: Designed for heavy-duty applications, these bearings boost operational efficiency and reduce downtime.
Exceptional Load Handling: Engineered to handle high loads, ensuring reliable and consistent performance.
Trusted Reliability: Depend on AMIGO 308 Bearings for dependable solutions tailored to industrial needs.
