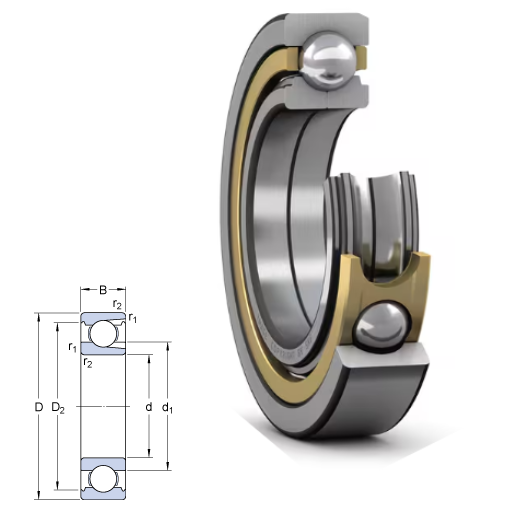

307 – Maximum Capacity Series Deep Groove Radial Ball Bearings

307

The 307 Maximum Capacity Series Deep Groove Radial Ball Bearing is one of the most powerful bearings because it ensures potent performance with remarkable long-lasting durability. These bearings are particularly suited for demanding industrial uses due to their ability to carry loads. Because of their strong construction, these bearings require little maintenance, enhancing efficiency by minimizing periods of non-operation. The 307 Series guarantees a reliable, high-quality solution with exceptional performance to tackle challenging operational loads while surpassing expectations for reliability and efficiency across various environments.

307 interchange SKF 307
307 cross reference SKF 307
307 Equivalent bearing interchange guide:
Price:enquiry
Model Number:307

Explore the 307 - Maximum Capacity Series Deep Groove Radial Ball Bearings Catalogue

D80 mm
d35 mm
B21 mm
NounBearing
Bore1.378 Inch | 35 Millimeter
UNSPSC31171504
series:30
CategorySingle Row Ball Bearing
Inventory1
EnclosureOpen
Size (mm)80x35x21
Snap RingNo
Width (mm)21
bore type:Round
Weight / LBS1.1
Mass bearing0.48 kg
maximum rpm:9500 RPM
Inch - MetricMetric
Product GroupB00308
Cage MaterialSteel
closure type:Open
D269.2 mm
d149.56 mm
Keyword StringBall
bore diameter:35 mm
cage material:Steel
fillet radius:1.5 mm
overall width:21 mm
Bearing number307
Limiting speed9500 r/min
Rolling ElementBall Bearing
finish/coating:Uncoated
Precision ClassABEC 1 | ISO P0
Reference speed16000 r/min
Manufacturer URLhttp://www.skf.com
Long Description35MM Bore; 80MM Outside Diameter; 21MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; Yes Filling Slot; No Snap Ring; No Internal Special Features
Outer Race Width0.827 Inch | 21 Millimeter
Outside Diameter3.15 Inch | 80 Millimeter
precision rating:ABEC 3 (ISO Class 6)
outside diameter:80 mm
outer ring width:21 mm
Manufacturer NameSKF
Weight / Kilogram0.5
da?min.44 mm
Bore Diameter (mm)80
Da?max.71 mm
Internal ClearanceC0-Medium
ra?max.1.5 mm
internal clearance:C0
Outer Diameter (mm)35
snap ring included:Without Snap Ring
da?- min.44 mm
r1,2?min.1.5 mm
ra?- max.1.5 mm
Da?- max.71 mm
Minimum Buy QuantityN/A
static load capacity:26.5 kN
row type & fill slot:Single Row Filling Slot
r1,2?- min.1.5 mm
dynamic load capacity:34.7 kN
Harmonized Tariff Code8482.10.50.68
Manufacturer Item Number307
Internal Special FeaturesNo
thrust application warning:This product can not be used in Thrust Applications
Basic dynamic load rating C34.7 kN
Basic dynamic load rating - C34.7 kN
Maximum Capacity / Filling SlotYes
Fatigue load limit Pu1.12 kN
Calculation factor kr0.05
Fatigue load limit - Pu1.1 kN
Calculation factor - kr0.05
Basic static load rating C026.5 kN
Basic static load rating - C026.5 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 307 Bearings

Built for high-demand industries, AMIGO 307 Bearings have excellent durability, efficient performance, and superior load capacity. These bearings are designed for heavy-duty applications, minimizing maintenance and downtime while maximizing productivity. Their robust construction and dependable performance make them ideal for enduring industrial workloads while enhancing operational efficiency. For trustworthy and reliable solutions that perform superbly in tough situations, turn to AMIGO.

Exceptional Durability: AMIGO 307 Bearings are built to last, even in harsh industrial environments.
High Load Capacity: Efficiently handles heavy-duty applications with superior performance.
Enhanced Productivity: Reduces maintenance and downtime, optimizing operational efficiency.
Trusted Reliability: Provides consistent, high-quality results for demanding industries.
