208 – Maximum Capacity Series Deep Groove Radial Ball Bearings

208

Amigo's 208 - Maximum Capacity Series Deep Groove Radial Ball Bearings offer outstanding load-bearing capacity coupled with unmatched durability and reliability. The supplier of bearings throughout China, Amigo always guarantees high quality bearings which are suited for the most critical workloads of industries. Solutions developed by Amigo are trusted for improvement in efficiency and increasing the life Span of machineries conduced Industrial Work or Construction.

208 interchange SKF 208
208 cross reference SKF 208
208 Equivalent bearing interchange guide:
Price:enquiry
Model Number:208

Explore the 208 - Maximum Capacity Series Deep Groove Radial Ball Bearings Catalogue

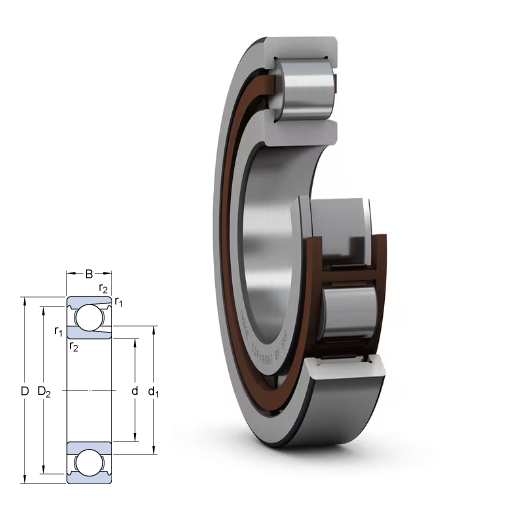

D80 mm
d40 mm
B18 mm
NounBearing
Bore1.575 Inch | 40 Millimeter
UNSPSC31171504
series:20
CategorySingle Row Ball Bearing
Inventory6
EnclosureOpen
Size (mm)80x40x18
Snap RingNo
Width (mm)18
bore type:Round
Weight / LBS0.81
Mass bearing0.39 kg
maximum rpm:9500 RPM
Inch - MetricMetric
Product GroupB00308
Cage MaterialSteel
closure type:Open
D269.8 mm
d152.6 mm
Keyword StringBall
bore diameter:40 mm
cage material:Steel
fillet radius:1 mm
overall width:18 mm
Bearing number208
Limiting speed9500 r/min
Rolling ElementBall Bearing
finish/coating:Uncoated
Precision ClassABEC 1 | ISO P0
Reference speed15000 r/min
Manufacturer URLhttp://www.skf.com
Long Description40MM Bore; 80MM Outside Diameter; 18MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; Yes Filling Slot; No Snap Ring; No Internal Special Features
Outer Race Width0.709 Inch | 18 Millimeter
Outside Diameter3.15 Inch | 80 Millimeter
precision rating:ABEC 3 (ISO Class 6)
outside diameter:80 mm
outer ring width:18 mm
Manufacturer NameSKF
Weight / Kilogram0.37
da min.47 mm
Da max.73 mm
Bore Diameter (mm)80
Internal ClearanceC0-Medium
ra max.1 mm
internal clearance:C0
Outer Diameter (mm)40
snap ring included:Without Snap Ring
da- min.47 mm
r1,2min.1.1 mm
ra- max.1 mm
Da- max.73 mm
Minimum Buy QuantityN/A
static load capacity:27 kN
D2 ≈69.8 mm
d1 ≈52.6 mm
row type & fill slot:Single Row Filling Slot
r1,2- min.1.1 mm
dynamic load capacity:33.6 kN
Harmonized Tariff Code8482.10.50.68
Manufacturer Item Number208
Internal Special FeaturesNo
thrust application warning:This product can not be used in Thrust Applications
Basic dynamic load rating C33.6 kN
Basic dynamic load rating - C33.6 kN
Maximum Capacity / Filling SlotYes
Fatigue load limit Pu1.16 kN
Calculation factor kr0.04
Fatigue load limit - Pu1.2 kN
Calculation factor - kr0.04
Basic static load rating C027 kN
Basic static load rating - C027 kN
