6324 – 6300 Series Deep Groove Radial Ball Bearings

As one of the top suppliers in China, Amigo offers deep groove radial ball bearings of the 6324 series, which are famous for their accuracy and durability. Specifically designed for industrial applications, these bearings maintain efficiency during smooth operations even when substantial loads are present. The 6324 bearings also have challenging build and high-speed capabilities, making them well-suited for various operational requirements. For unparalleled quality and reliability, use Amigo.

6324 interchange FAG 6324
6324 cross reference FAG 6324
6324 Equivalent bearing interchange guide:
Price:enquiry
Model Number:6324

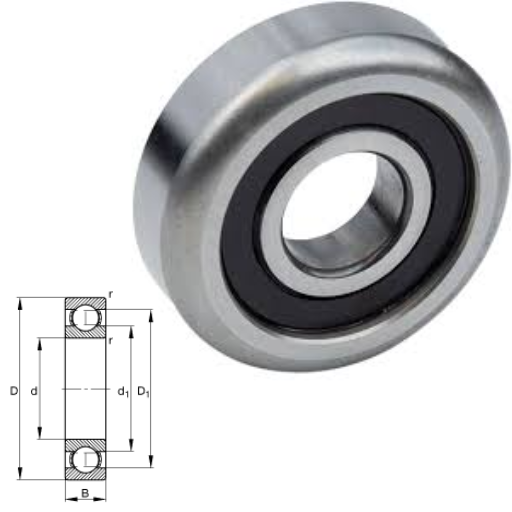

Explore the 6324 - 6300 Series Deep Groove Radial Ball Bearings

m12,8 kg / Weight
d120 mm
D260 mm
B55 mm
Size (mm)120x260x55
Width (mm)55
d1165,1 mm
nB3850 1/min / Reference speed
nG3450 1/min / Limiting speed
D1214,9 mm
Cr225000 N / Dynamic load rating (radial)
C0r190000 N / Static load rating (radial)
Bearing number6324
Cur9000 N / Fatigue limit load, radial
rmin3 mm
ra max2,5 mm
da min134 mm
Da max246 mm
Bore Diameter (mm)120
Outer Diameter (mm)260

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 6324 Bearings

The AMIGO 6324 Bearings are deep groove ball single row bearings with a robust and friction-minimized design, which makes them very versatile. These bearings can support both radial and axial loads in high-speed applications and have a steel cage, a bore diameter of 120mm, an outer diameter of 260mm, and a width of 55mm. They are also used with industrial and factory automation tools and machines because they can provide smooth operation with minimal noise and vibration. These bearings can withstand extreme operating conditions and need very little maintenance, which makes them highly reliable.

✅ PM Performance Bearings: Discover the one-of-a-kind accuracy and dependability offered by AMIGO 6324 Bearings.
✅ Designed For Strength: Long-lasting performance is offered even in the most challenging conditions.
✅Adaptable Uses: Ideal for the full spectrum of engineering and manufacturing needs.
✅ Place Your Order Now, Enhance Tomorrow:Instantly transform everyday operations by getting the bearings today.
