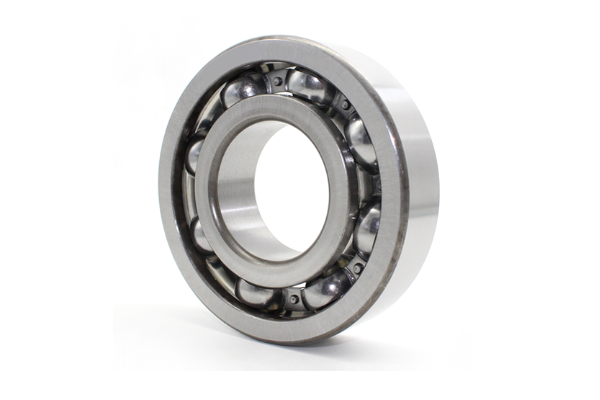

6316 – 6300 Series Deep Groove Radial Ball Bearings

Amigo is a top company in China, supplying 6316 Series Deep Groove Radial Ball Bearings. As with other parts of the industry, timeless precision automotive engineering offers remarkable ease of use and unparalleled durability with these bearings. They pair perfectly with multiple applications throughout the industry and provide consistent performance during constant heavy loading conditions. Rely on Amigo's 6316 bearings, specifically manufactured to enhance effectiveness and productivity even in the most challenging environments.

6316 interchange FAG 6316
6316 cross reference FAG 6316
6316 Equivalent bearing interchange guide:
Price:enquiry
Model Number:6316

Explore the 6316 - 6300 Series Deep Groove Radial Ball Bearings

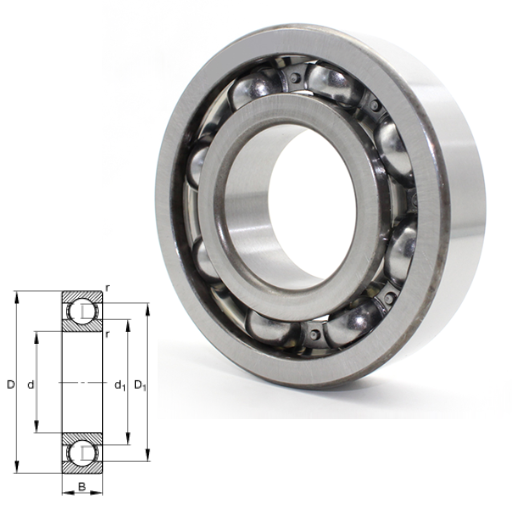

m3,75 kg / Weight
d80 mm
D170 mm
B39 mm
Size (mm)80x170x39
Width (mm)39
d1108,6 mm
nB5500 1/min / Reference speed
nG5400 1/min / Limiting speed
D1141,8 mm
Cr131000 N / Dynamic load rating (radial)
C0r87000 N / Static load rating (radial)
Bearing number6316
Cur5200 N / Fatigue limit load, radial
rmin2,1 mm
ra max2,1 mm
da min92 mm
Da max158 mm
Bore Diameter (mm)80
Outer Diameter (mm)170

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 6316 Bearings

The AMIGO 6316 Bearings have been specifically designed to be high-quality deep-groove ball bearings that provide versatility and durability. Incorporating radial and axial loads of 170mm outer diameter, AMIGO ball bearings stand with 39mm width and 80mm inner diameter, which positions them perfectly for their dual-purpose applicability. In addition, low friction, high maintenance, and sturdy performance throughout different sectors make them best for high-speed applications.

✅ Dependable Outcomes Ensured: AMIGO 6316 bearings will enhance the reliability of your machinery and ensure long-lasting trustworthiness.
✅ Designed for Effectiveness: Eliminate downtime, as today’s sophisticated bearings will help boost your productivity; also, minimize bearing-related machine downtime during inspections and repairs.
✅ Durability that Lasts:Maximum durability exposed to continuous demanding industrial applications.
✅ Purchase Them Now:Act fast to enjoy the unmatched offer of AMIGO 6316 bearings. Take advantage now to experience timeless preservation that guarantees reliability.
