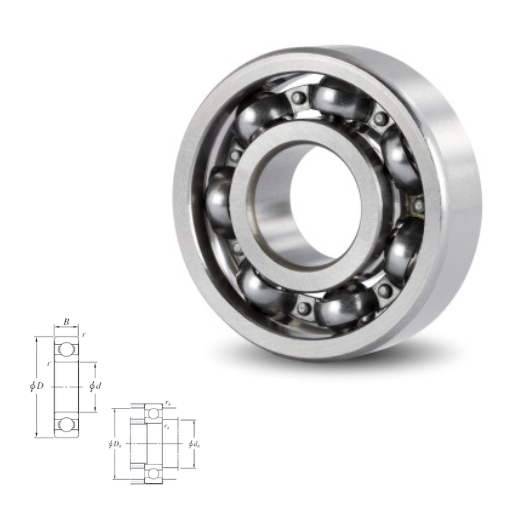

6096 – 6000 Series Deep Groove Radial Ball Bearings

6096

6096 - 6000 series deep groove ball bearings offer deep precision, durability, and ned efficiency for harsh industrial use. These bearings perform exceedingly well under radial and axial loads while providing smooth operation that requires little maintenance. The versatility of these bearings is unmatched as they surpass strict industry requirements and perform well under varying and complex conditions. They are designed for optimal functionality, reducing the cost of machinery maintenance while increasing efficiency and life.

6096 interchange KOYO 6096
6096 cross reference KOYO 6096
6096 Equivalent bearing interchange guide:
Price:enquiry
Model Number:6096

Explore the 6096—6000 Series Deep Groove Radial Ball Bearings Catalogue

D700 mm
d480 mm
B100 mm
r min.6 mm
Weight127 Kg
da min.504 mm
Da max.676 mm
ra max.5 mm
Size (mm)480x700x100
Width (mm)100
Bearing number6096
Bore Diameter (mm)480
Outer Diameter (mm)700
Basic dynamic load rating (C)603 kN
Basic static load rating (C0)1090 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 6096 Bearings

The deep groove ball bearings of AMIGO’s 6096 – 6000 series are unmatched in durability, precision, and efficiency for industrial use. They are designed to cope with both radial and axial loads, guaranteeing trouble-free operation and smooth motion with the least amount of effort required for maintenance. These bearings operate remarkably well in multi-purpose and complex conditions and can follow rigorous industry benchmarks to improve the functioning and lifespan of machinery. Rely on AMIGO 6096 bearings for excellent performance and efficiency improvements.

Exceptional Durability:6096 – 6000 series deep groove ball bearings are designed to handle radial and axial loads reliably.
Precision Performance:Engineered for smooth, accurate operation, these bearings meet stringent industrial standards.
Versatile Applications:Adaptable to challenging environments, they enhance machinery efficiency and longevity.
Cost-Effective Solution:Delivering high-quality, consistent performance, these bearings are an economical choice for optimized operations.
