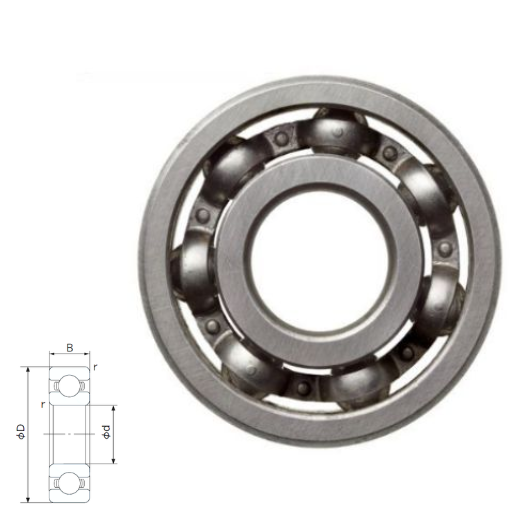

6040 – 6000 Series Deep Groove Radial Ball Bearings

6040

The 6040 - 6000 deep groove ball bearings have great versatility and flexibility. They are designed to function optimally in industrial settings, having the ability to manage both radial and axial loads. These components are low maintenance and ensure dependable performance. Their design promotes reduced friction, increasing operations' overall efficiency while supporting high speeds, enhanced durability, and reduced deterioration. Capable of withstanding harsh conditions, 6040 -6000 series bearings prolong the lifespan of machines, reduce downtime, and ensure consistent, dependable output.

6040 interchange NACHI 6040
6040 cross reference NACHI 6040
6040 Equivalent bearing interchange guide:
Price:enquiry
Model Number:6040



Explore the 6040—6000 Series Deep Groove Radial Ball Bearings Catalogue

D310 mm
d200 mm
B51 mm
C51 mm
Width51 mm
Weight13.9 Kg
r min.2.1 mm
da min.209 mm
Da max.301 mm
ra max.2.0 mm
ra (max)2 mm
da (min)209 mm
Da (max)301 mm
Bore Size200 mm
Factor fo15.8
Size (mm)200x310x51
EnclosureOpen
Bore TypeCylindrical Bore
Width (mm)51
ConfigurationSingle Row
Bearing number6040
Radial Clearance0.025 to 0.071 mm
Outside Diameter310 mm
Static Load Rating222,000 N
Bore Diameter (mm)200
Dynamic Load Rating202,000 N
Outer Diameter (mm)310
Limiting Speed - Oil2,400 rpm
Fillet Radius/Chamfer2.1 mm
Limiting Speed - Grease2,000 rpm
(Grease) Lubrication Speed1900 r/min
Basic static load rating (C0)222 kN
Basic dynamic load rating (C)202 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 6040 Bearings

AMIGO 6040 – 6000 Series Deep Groove Ball Bearings have versatile applications, offer low friction performance, and are robust, enduringly durable. These bearings are custom-made to efficiently manage substantial radial and axial loads, which may vary depending on the industry. Their maintenance-free design ensures smooth, high-speed operations while minimizing downtimes, greatly enhancing efficiency. AMIGO 6040 – 6000 series bearings are optimal for electric motors, pumps, and automotive systems, making them a dependable yet affordable option for high-demand operations that need to improve machinery performance and lifespan.

Enhanced Durability: Handles significant radial and axial loads, ensuring long-lasting performance.
Efficient Operation: Low-friction design supports high-speed functionality and reliable efficiency.
Versatile Applications: Perfect for electric motors, pumps, automotive systems, and more.
Low Maintenance: Robust construction minimizes upkeep and reduces downtime.
