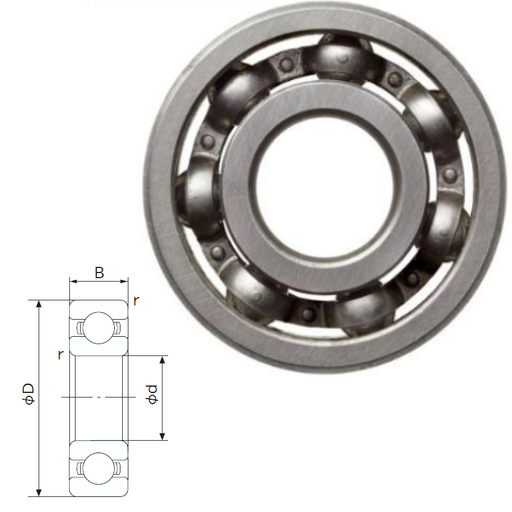

6034 – 6000 Series Deep Groove Radial Ball Bearings

6034

The 6034-6000 series deep-groove ball bearings offer excellent low maintenance, durability, smooth operation, and uniform dependability, all with minimal friction. These bearings are designed to handle significant radial and axial loads while ensuring efficient functioning in automotive and industrial settings. Their rugged construction reduces maintenance, enhancing operational efficiency and productivity. These 6034 - 6000 series bearings with precision engineering and superior build quality provide trusted solutions for challenging environments while ensuring optimal performance and reliability in machinery for sustained periods.

6034 interchange NACHI 6034
6034 cross reference NACHI 6034
6034 Equivalent bearing interchange guide:
Price:enquiry
Model Number:6034



Explore the 6034—6000 Series Deep Groove Radial Ball Bearings Catalogue

D260 mm
d170 mm
B42 mm
C42 mm
Width42 mm
Weight7.92 Kg
r min.2.1 mm
da min.179 mm
Da max.251 mm
ra max.2.0 mm
ra (max)2 mm
da (min)179 mm
Da (max)251 mm
Bore Size170 mm
Factor fo15.7
Size (mm)170x260x42
EnclosureOpen
Bore TypeCylindrical Bore
Width (mm)42
ConfigurationSingle Row
Bearing number6034
Radial Clearance0.020 to 0.061 mm
Outside Diameter260 mm
Static Load Rating160,000 N
Bore Diameter (mm)170
Dynamic Load Rating161,000 N
Outer Diameter (mm)260
Limiting Speed - Oil2,800 rpm
Fillet Radius/Chamfer2.1 mm
Limiting Speed - Grease2,400 rpm
(Grease) Lubrication Speed2200 r/min
Basic static load rating (C0)160 kN
Basic dynamic load rating (C)161 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 6034 Bearings

The deep groove ball bearings of the AMIGO 6034 – 6000 series are efficient, reliable, and durable. They are manufactured to withstand high radial and axial loads, making them useful in automotive and industrial applications. Engineering these bearings ensures low to negligible friction and consistent performance, further reducing maintenance needs and enhancing machinery productivity. Due to their multifaceted design for exceptional construction, these bearings are a benchmark in demanding operational environments.

Exceptional durability: Built to handle heavy radial and axial loads, ensuring long-lasting performance.
Efficient operations: Designed for low friction and consistent results, reducing wear and tear.
Versatile applications: Optimized for industrial and automotive use, suitable for diverse environments.
Trusted reliability: Precision-engineered for dependable performance and minimized maintenance needs.
