6022 – 6000 Series Deep Groove Radial Ball Bearings – Copy

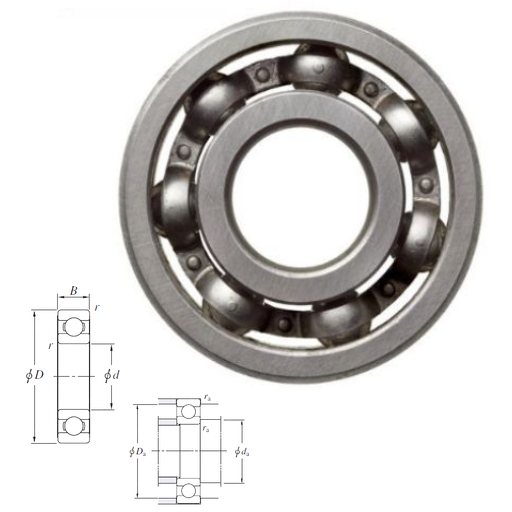

6022

The 6022 - 6000 series deep groove ball bearings are designed to optimize performance and durability deeply. It features low-friction performance under both radial and axial loads. The rotary strength and heavy-duty construction make it perfect for automotive and industrial applications. With these bearings, users can rely on them for high-reliability systems that require little maintenance across a wide range of strenuous tasks. 6022 - 6000 series deep groove ball bearings can be used to enhance the efficiency of existing systems or as replacements while still guaranteeing unmatched quality and performance customized for rigorous operational demands.

6022 interchange KOYO 6022
6022 cross reference KOYO 6022
6022 Equivalent bearing interchange guide：
Price：enquiry
Model Number：6022



INSTANT QUOTE
Download 6022 PDF

Explore the 6022—6000 Series Deep Groove Radial Ball Bearings Catalogue

D170 mm
d110 mm
B28 mm
C28 mm
f015.6
Cu3.55
Cr103
C0r73
Bore4.331 Inch | 110 Millimeter
NounBearing
UNSPSC31171504
Weight1,96 Kg
r(min)2
r min.2 mm
da min.119 mm
ra(max)2
Da max.161 mm
Da(max)161
da(min)119
ra max.2 mm
CategorySingle Row Ball Bearing
Oil lub.4500
Inventory0
EnclosureOpen
Size (mm)110x170x28
Snap RingNo
Width (mm)28
Grease lub.3800
Bearing No.6022
Weight / LBS4.673
Product GroupB00308
Cage MaterialSteel
Inch - MetricMetric
Keyword StringBall
Bearing number6022
Precision ClassABEC 1 | ISO P0
Rolling ElementBall Bearing
Outer Race Width1.102 Inch | 28 Millimeter
Long Description110MM Bore; 170MM Outside Diameter; 28MM Outer Race Diameter; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features
Outside Diameter6.693 Inch | 170 Millimeter
(Refer.)Mass(kg)1.96
Manufacturer URLhttp://www.koyousa.com
Weight / Kilogram2.122
Manufacturer NameKOYO
Internal ClearanceC0-Medium
Bore Diameter (mm)110
Outer Diameter (mm)170
Minimum Buy QuantityN/A
Harmonized Tariff Code8482.10.50.68
(Oil) Lubrication Speed4500 r/min
Manufacturer Item Number6022
Internal Special FeaturesNo
(Grease) Lubrication Speed3800 r/min
Basic static load rating (C0)73 kN
Basic dynamic load rating (C)82 kN
Maximum Capacity / Filling SlotNo

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 6022 Bearings

Enhance Amigo 6022 Bearings with your equipment. These bearings from the 6022 – 6000 series possess a deep groove and a 110mm diameter, offering outstanding performance and durability while maintaining low friction resistance. Select between sealed (2RS) and shielded (ZZ) versions for custom solutions to match your application requirement. Suitable for OEM or replacement purposes, these bearings operate reliably in harsh conditions while enduring radial and axial loads simultaneously. Amigo 6022 Bearings excel in industrial and automotive applications, enduring extreme conditions while providing high-speed reliability and lasting durability.

Enhance Machinery Performance: Choose AMIGO 6022 Bearings to boost durability, efficiency, and reliability in industrial and automotive applications.
Customizable to Your Needs：Select sealed (2RS) or shielded (ZZ) versions for tailored solutions to fit various demands.
Reliable Under Tough Conditions：Handle both radial and axial loads with minimal friction for constant high-speed performance and long-lasting operation.
Ideal for OEM or Replacement：Perfect for original equipment or replacements to optimize productivity and ensure smooth, dependable functionality.
