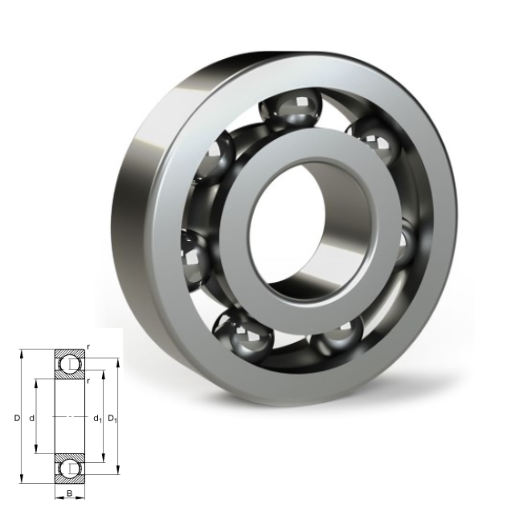

16009 – 16002 Series Deep Groove Radial Ball Bearings

16009

Amigo, a reliable supplier from China, has supplied 16009 - 16002 Series Deep Groove Radial Ball Bearings. With unmatched durability, precision, and versatility, these high-quality bearings enable operational efficiency across multiple applications. Their design aids in maintenance and enhances productivity, demonstrating industrial mastery. Enjoy high-quality bearing solutions from Amigo today!

16009 interchange FAG 16009
16009 cross reference FAG 16009
16009 Equivalent bearing interchange guide:
Price:enquiry
Model Number:16009

Explore the 16009 - 16002 Series Deep Groove Radial Ball Bearings Catalogue

ParameterDetails
m0,167 kg / Weight
d45 mm
D75 mm
B10 mm
Size (mm)45x75x10
Width (mm)10
d155 mm
nB7300 1/min / Reference speed
nG13500 1/min / Limiting speed
D165,6 mm
f015,9
Cr16600 N / Dynamic load rating (radial)
C0r12200 N / Static load rating (radial)
Bearing number16009
Cur620 N / Fatigue limit load, radial
rmin0,6 mm
ra max0,6 mm
da min48,2 mm
Da max71,8 mm
Bore Diameter (mm)45
Outer Diameter (mm)75

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 16009 Bearings

Incorporate AMIGO 16009 Bearings and see your systems perform better. These high-performance bearings are known for precision, adaptability, durability, and reliability in varying operations. Whether in industrial or civil operations, AMIGO guarantees low maintenance and high durability. ACT NOW and select AMIGO to solve all your bearing needs!

✅Precision Engineering: Ensure high-quality accuracy to meet critical operational needs.
✅Versatile Applications: Perfectly designed for diverse and adaptable industrial uses.
✅Superior Durability: Built to withstand demanding industrial applications with long-lasting strength.
✅Act Now: Choose AMIGO for superior bearing solutions and optimized results.
