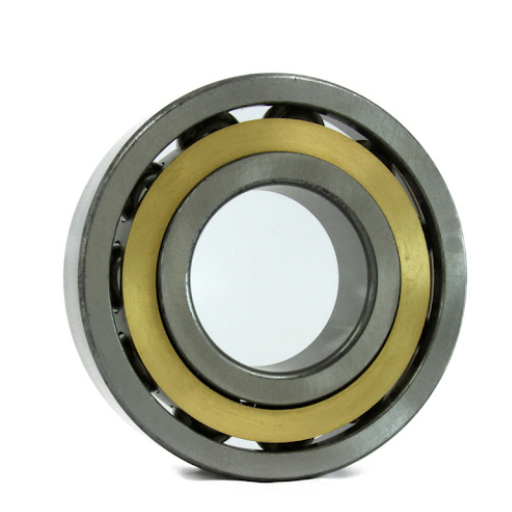

7300 Series Heavy Duty Super Precision Angular Contact Ball Bearings

Item #	(d) Bore Diameter	(D) Outer Diameter	(B) Width	(Grease) Speed Limit	(Oil) Speed Limit	Weight
7300CTDULP4	10 mm	35 mm	11 mm	37200 min-1	57300 min-1	0.052 kg
7301CTDULP4	12 mm	37 mm	12 mm	34800 min-1	53600 min-1	0.060 kg
7302CTDULP4	15 mm	42 mm	13 mm	31000 min-1	47800 min-1	0.086 kg
7303C7DULP4	17 mm	47 mm	14 mm	25300 min-1	39000 min-1	0.115 kg
7304CTDULP4	20 mm	52 mm	15 mm	23500 min-1	36100 min-1	0.144 kg
7305CTDULP4	25 mm	62 mm	17 mm	19300 min-1	29700 min-1	0.236 kg
7306CTDULP4	30 mm	72 mm	19 mm	16400 min-1	25200 min-1	0.348 kg
7307CTOULP4	35 mm	80 mm	21 mm	14400 min-1	22200 min-1	0.473 kg
7308CTDULP4	40 mm	90 mm	23 mm	12700 min-1	19500 min-1	0.628 kg
7309CTDULP4	45 mm	100 mm	25 mm	11300 min-1	17400 min-1	0.839 kg
7310CTDULP4	50 mm	110 mm	27 mm	10100 min-1	15600 min-1	1.088 kg
7311CTDULP4	55 mm	120 mm	29 mm	9200 min-1	14200 min-1	1.386 kg
7312CTDULP4	60 mm	130 mm	31 mm	8400 min-1	13000 min-1	1.739 kg
7313CTDULP4	65.000 mm	140 mm	33 mm	7700 min-1	11900 min-1	2.141 kg
7314CTDULP4	70.000 mm	150 mm	35 mm	7100 min-1	11000 min-1	2.658 kg
7315CTDULP4	75.000 mm	160 mm	37 mm	6700 min-1	10300 min-1	3.189 kg
7316CTDULP4	80.000 mm	170 mm	39 mm	6200 min-1	9600 min-1	3.851 kg
7317CTDULP4	85.000 mm	180 mm	41 mm	5800 min-1	9000 min-1	4.403 kg
7318CTDULP4	90.000 mm	190 mm	43 mm	5500 min-1	8400 min-1	5.084 kg
7319CTDULP4	95.000 mm	200 mm	45 mm	5100 min-1	7900 min-1	6.085 kg
7320C7DULP4	100.000 mm	215 mm	47 mm	4700 min-1	7300 min-1	7.468 kg

Item #

(d) Bore Diameter

(D) Outer Diameter

(B) Width

(Grease) Speed Limit

(Oil) Speed Limit

Weight

7300CTDULP4

10 mm

35 mm

11 mm

37200 min-1

57300 min-1

0.052 kg

7301CTDULP4

12 mm

37 mm

12 mm

34800 min-1

53600 min-1

0.060 kg

7302CTDULP4

15 mm

42 mm

13 mm

31000 min-1

47800 min-1

0.086 kg

7303C7DULP4

17 mm

47 mm

14 mm

25300 min-1

39000 min-1

0.115 kg

7304CTDULP4

20 mm

52 mm

15 mm

23500 min-1

36100 min-1

0.144 kg

7305CTDULP4

25 mm

62 mm

17 mm

19300 min-1

29700 min-1

0.236 kg

7306CTDULP4

30 mm

72 mm

19 mm

16400 min-1

25200 min-1

0.348 kg

7307CTOULP4

35 mm

80 mm

21 mm

14400 min-1

22200 min-1

0.473 kg

7308CTDULP4

40 mm

90 mm

23 mm

12700 min-1

19500 min-1

0.628 kg

7309CTDULP4

45 mm

100 mm

25 mm

11300 min-1

17400 min-1

0.839 kg

7310CTDULP4

50 mm

110 mm

27 mm

10100 min-1

15600 min-1

1.088 kg

7311CTDULP4

55 mm

120 mm

29 mm

9200 min-1

14200 min-1

1.386 kg

7312CTDULP4

60 mm

130 mm

31 mm

8400 min-1

13000 min-1

1.739 kg

7313CTDULP4

65.000 mm

140 mm

33 mm

7700 min-1

11900 min-1

2.141 kg

7314CTDULP4

70.000 mm

150 mm

35 mm

7100 min-1

11000 min-1

2.658 kg

7315CTDULP4

75.000 mm

160 mm

37 mm

6700 min-1

10300 min-1

3.189 kg

7316CTDULP4

80.000 mm

170 mm

39 mm

6200 min-1

9600 min-1

3.851 kg

7317CTDULP4

85.000 mm

180 mm

41 mm

5800 min-1

9000 min-1

4.403 kg

7318CTDULP4

90.000 mm

190 mm

43 mm

5500 min-1

8400 min-1

5.084 kg

7319CTDULP4

95.000 mm

200 mm

45 mm

5100 min-1

7900 min-1

6.085 kg

7320C7DULP4

100.000 mm

215 mm

47 mm

4700 min-1

7300 min-1

7.468 kg
