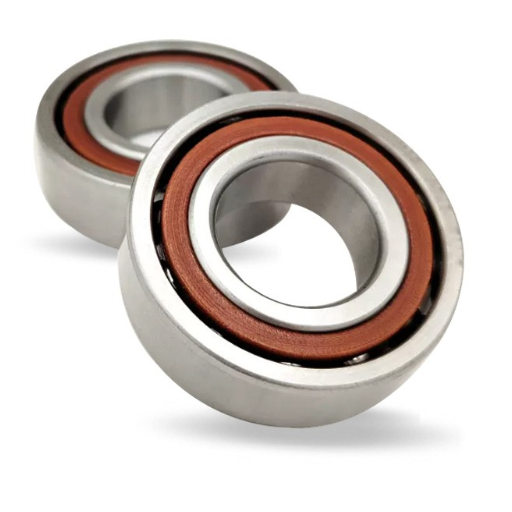

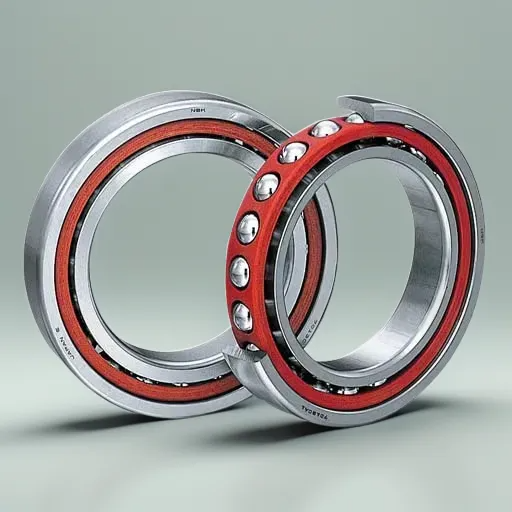

7200 Series Medium Duty Super Precision Angular Contact Ball Bearings

Item #	(d) Bore Diameter	(D) Outer Diameter	(B) Width	(Grease) Speed Limit	(Oil) Speed Limit	Basic Radial Load	Ball Number
7200CTDULP4	10 mm	30 mm	9 mm	42900 min-1	66000 min-1	1100	8
7201CTDULP4	12 mm	32 mm	10 mm	38900 min-1	59900 min-1	1200	8
7202CTDULP4	15 mm	35 mm	11 mm	34200 min-1	52600 min-1	1530	9
7203CTDULP4	17 mm	40 mm	12 mm	29900 min-1	46000 min-1	1900	9
7204CTDULP4	20 mm	47 mm	14 mm	25300 min-1	38900 min-1	2300	9
7205CTDULP4	25 mm	52 mm	15 mm	21900 min-1	33700 min-1	2500	10
7206CTDULP4	30 mm	62 mm	16 mm	18200 min-1	28000 min-1	3960	11
7207CTDULP4	35 mm	72 mm	17 mm	15500 min-1	23900 min-1	5150	12
7208CTDULP4	40 mm	80 mm	18 mm	13800 min-1	21200 min-1	6200	11
7209CTDULP4	45 mm	85 mm	19 mm	12700 min-1	19500 min-1	6550	12
7210CTDULP4	50 mm	90 mm	20 mm	11700 min-1	18000 min-1	7250	14
7211CTDULP4	55 mm	100 mm	21 mm	10500 min-1	16200 min-1	9000	14
7212CTDULP4	60 mm	110 mm	22 mm	9500 min-1	14700 min-1	10300	13
7213CTDULP4	65.000 mm	120 mm	23 mm	8600 min-1	13300 min-1	11300	13
7214CTDULP4	70.000 mm	125 mm	24 mm	8200 min-1	12600 min-1	12900	14
7215CTDULP4	75.000 mm	130 mm	25 mm	7700 min-1	11900 min-1	13400	15
7216CTDULP4	80.000 mm	140 mm	26 mm	7100 min-1	11000 min-1	15000	14
7217CTDULP4	85.000 mm	150 mm	28 mm	6500 min-1	10000 min-1	16800	15
7218CTDULP4	90.000 mm	160 mm	30 mm	6200 min-1	9600 min-1	18900	16
7219CTDULP4	95.000 mm	170 mm	32 mm	5800 min-1	8900 min-1	22000	15
7220CTDULP4	100.000 mm	180 mm	34 mm	5500 min-1	8500 min-1	25400	14
7221CTDULP4	105.000 mm	190 mm	36 mm	5100 min-1	7900 min-1	28600	15
7222CTDULP4	110.000 mm	200 mm	38 mm	4900 min-1	7500 min-1	29800	16
7224CTDULP4	120.000 mm	215 mm	40 mm	4500 min-1	6900 min-1	33400	15
7226CTDULP4	130 mm	230 mm	40 mm	4100 min-1	6300 min-1	35400	15
7228CTDULP4	140 mm	250 mm	42 mm	3700 min-1	5700 min-1	40000	16
7230CTDULP4	150 mm	270 mm	45 mm	3400 min-1	5200 min-1	N/A	N/A

Item #

(d) Bore Diameter

(D) Outer Diameter

(B) Width

(Grease) Speed Limit

(Oil) Speed Limit

Basic Radial Load

Ball Number

7200CTDULP4

10 mm

30 mm

9 mm

42900 min-1

66000 min-1

1100

7201CTDULP4

12 mm

32 mm

10 mm

38900 min-1

59900 min-1

1200

7202CTDULP4

15 mm

35 mm

11 mm

34200 min-1

52600 min-1

1530

7203CTDULP4

17 mm

40 mm

12 mm

29900 min-1

46000 min-1

1900

7204CTDULP4

20 mm

47 mm

14 mm

25300 min-1

38900 min-1

2300

7205CTDULP4

25 mm

52 mm

15 mm

21900 min-1

33700 min-1

2500

7206CTDULP4

30 mm

62 mm

16 mm

18200 min-1

28000 min-1

3960

7207CTDULP4

35 mm

72 mm

17 mm

15500 min-1

23900 min-1

5150

7208CTDULP4

40 mm

80 mm

18 mm

13800 min-1

21200 min-1

6200

7209CTDULP4

45 mm

85 mm

19 mm

12700 min-1

19500 min-1

6550

7210CTDULP4

50 mm

90 mm

20 mm

11700 min-1

18000 min-1

7250

7211CTDULP4

55 mm

100 mm

21 mm

10500 min-1

16200 min-1

9000

7212CTDULP4

60 mm

110 mm

22 mm

9500 min-1

14700 min-1

10300

7213CTDULP4

65.000 mm

120 mm

23 mm

8600 min-1

13300 min-1

11300

7214CTDULP4

70.000 mm

125 mm

24 mm

8200 min-1

12600 min-1

12900

7215CTDULP4

75.000 mm

130 mm

25 mm

7700 min-1

11900 min-1

13400

7216CTDULP4

80.000 mm

140 mm

26 mm

7100 min-1

11000 min-1

15000

7217CTDULP4

85.000 mm

150 mm

28 mm

6500 min-1

10000 min-1

16800

7218CTDULP4

90.000 mm

160 mm

30 mm

6200 min-1

9600 min-1

18900

7219CTDULP4

95.000 mm

170 mm

32 mm

5800 min-1

8900 min-1

22000

7220CTDULP4

100.000 mm

180 mm

34 mm

5500 min-1

8500 min-1

25400

7221CTDULP4

105.000 mm

190 mm

36 mm

5100 min-1

7900 min-1

28600

7222CTDULP4

110.000 mm

200 mm

38 mm

4900 min-1

7500 min-1

29800

7224CTDULP4

120.000 mm

215 mm

40 mm

4500 min-1

6900 min-1

33400

7226CTDULP4

130 mm

230 mm

40 mm

4100 min-1

6300 min-1

35400

7228CTDULP4

140 mm

250 mm

42 mm

3700 min-1

5700 min-1

40000

7230CTDULP4

150 mm

270 mm

45 mm

3400 min-1

5200 min-1

N/A
