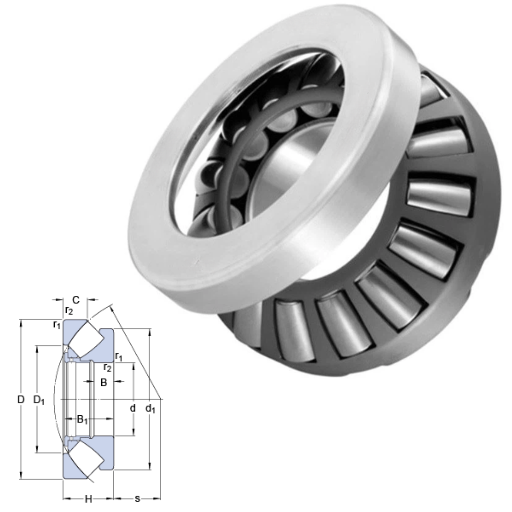

29396 – 29300 Series Thrust Style Spherical Roller Bearings

29396 - 29300 Series Thrust Style Spherical Roller Bearings

Amigo carries one of the best thrust style spherical roller bearings, Series 29396-29300, in China, specially prepared for superior performance and long life. Specially designed for heavy-duty applications, these bearings are ideal for handling large axial and radial loads in tough industrial atmospheres. With these advanced spherical roller designs, the load gets distributed positively, friction reduces, while operational efficiency increases.

29396 interchange SKF 29396
29396 cross reference SKF 29396
29396 Equivalent bearing interchange guide:
Price:enquiry
Model Number:29396

Explore the 29396 - 29300 Series Thrust Style Spherical Roller Bearings Catalogue

C73.5 mm
s270 mm
d480 mm
D730 mm
H150 mm
B50 mm
Size (mm)730x480x150
Width (mm)150
d1705 mm
D1591 mm
B1144 mm
Limiting speed800 r/min
Bearing number29396
Reference speed450 r/min
Bore Diameter (mm)730
Outer Diameter (mm)480
da - min.610 mm
Da - max.655 mm
ra - max.5 mm
r1,2 - min.6 mm
Factor min. axial load - A36
Basic dynamic load rating - C4370 kN
Fatigue load limit - Pu1530 kN
Basic static load rating - C019600 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 29396 Bearings

These 29396-29300 Series finds applications in mining, power plants, and marine environments, promising long service life and reliability. Trust Amigo for quality solutions tailored to your operational needs. Conveyed by materials of the highest standards, along with accurate engineering, these bearings resist wear, corrosion, and extreme operating conditions.

✅ High Load Capacity: Designed to handle axial loads efficiently, ensuring reliable performance under heavy-duty industrial applications.
✅ Self-Aligning Capability: Adjusts to misalignments, providing smooth operation and reducing wear in challenging conditions.
✅ Durable Construction: Manufactured with premium materials for enhanced longevity and resistance to wear and tear.
✅ Efficient Design: Optimized design reduces friction, improving energy efficiency and extending service life.

29300 Series Thrust Style Spherical Roller Bearings
