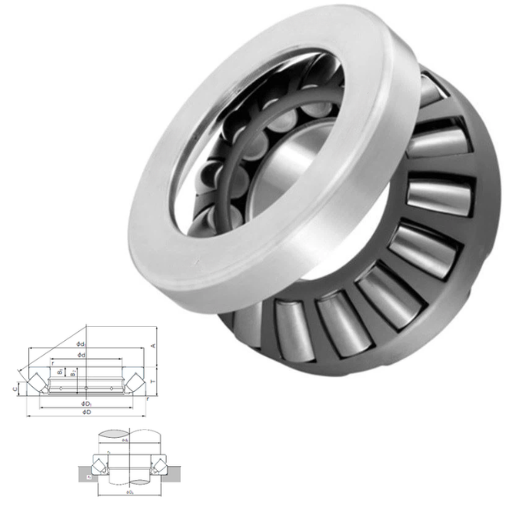

29392 – 29300 Series Thrust Style Spherical Roller Bearings

29392 - 29300 Series Thrust Style Spherical Roller Bearings

According to the Amigo plant manual, 29392 - 29300 Series Thrust Style Spherical Roller Bearings are made to go above and beyond in reliability and applications. That slight self-aligning capability works to alleviate stress that may be caused by shaft misalignment thereby increasing the efficiency. These bearings are designed to support high axial loads, with moderate radial loads, which finds applications in heavy machinery, mining, and construction industries.

29392E interchange NACHI 29392E
29392E cross reference NACHI 29392E
29392E Equivalent bearing interchange guide:
Price:enquiry
Model Number:29392E

Explore the 29392 - 29300 Series Thrust Style Spherical Roller Bearings Catalogue

C72 mm
B51 mm
d460 mm
D710 mm
T150 mm
A257 mm
B151 mm
D1567 mm
d1685 mm
B2144 mm
Width150 mm
r min.6 mm
Weight216 Kg
da min.575 mm
Da max.630 mm
ra max.5 mm
da (min)575 mm
Da (max)630 mm
ra (max)5 mm
Bore TypeCylindrical Bore
EnclosureOpen
Bore Size460 mm
Size (mm)460x710x150
Width (mm)150
ConfigurationSingle Row
Bearing number29392E
Outside Diameter710 mm
Static Load Rating21,700,000 N
Bore Diameter (mm)460
Dynamic Load Rating4,600,000 N
Outer Diameter (mm)710
Limiting Speed - Oil430 rpm
Fillet Radius/Chamfer6 mm
Basic dynamic load rating (C)4600 kN
Basic static load rating (C0)21700 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 29392 Bearings

The 29392 – 29300 Series Thrust Style Spherical Roller Bearings by Amigo are the final choice for precision and reliability in your most demanding service applications. These bearings are designed to support high axial loads, with moderate radial loads, which finds applications in heavy machinery, mining, and construction industries. Holding reputation as one of the major suppliers in China, Amigo stands out in the technological front with the highest degree of craft.

✅ High Load Capacity: Designed to handle heavy axial loads efficiently, ensuring durability under demanding industrial applications.
✅ Self-Aligning Capability: Automatically adjusts to misalignments, reducing maintenance requirements and enhancing operational reliability.
✅ Long Service Life: Manufactured with premium materials and precision engineering to resist wear and extend operational lifespan.
✅ Efficient Performance: Optimized design minimizes friction to improve energy efficiency and system performance.

29300 Series Thrust Style Spherical Roller Bearings
