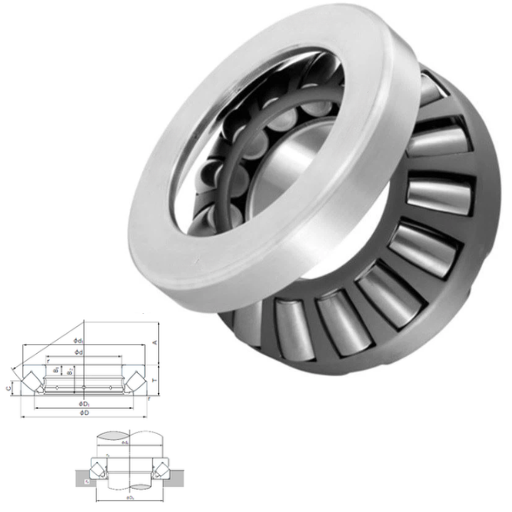

29326 E – 29300 Series Thrust Style Spherical Roller Bearings

29326 E - 29300 Series Thrust Style Spherical Roller Bearings

High-quality thrust spherical roller bearings 29326 E - 29300 Series are specifically designed to operate under very demanding conditions while providing unrivaled lasting efficiency by performing with utmost precision. Amigo, an industry leader, manufactured them with active controlled roller geometry which guarantees maximum efficiency under sheer loads or quickly rotating conditions.

29326E interchange NACHI 29326E
29326E cross reference NACHI 29326E
29326E Equivalent bearing interchange guide:
Price:enquiry
Model Number:29326E

Explore the 29326 E - 29300 Series Thrust Style Spherical Roller Bearings Catalogue

C28 mm
B19 mm
d130 mm
D225 mm
T58 mm
A76 mm
B119 mm
D1171 mm
d1215 mm
B255 mm
Width58 mm
r min.2.1 mm
Weight9.45 Kg
da min.170 mm
Da max.195 mm
ra max.2 mm
da (min)170 mm
Da (max)195 mm
ra (max)2 mm
Bore TypeCylindrical Bore
EnclosureOpen
Bore Size130 mm
Size (mm)130x225x58
Width (mm)58
ConfigurationSingle Row
Bearing number29326E
Outside Diameter225 mm
Static Load Rating2,420,000 N
Bore Diameter (mm)130
Dynamic Load Rating665,000 N
Outer Diameter (mm)225
Limiting Speed - Oil1,800 rpm
Fillet Radius/Chamfer2.1 mm
Basic dynamic load rating (C)665 kN
Basic static load rating (C0)2420 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 29326 E Bearings

Enhanced energy efficiency in the 29326 E model is achieved with improved combined friction. These bearings are relied on to serve the purpose of industrial machines, gearboxes and ship propulsion propellers. With proven and growing reputation together with favorable pricing and strict quality filtration, Amigo serves the rising market needs of China and the rest of the globe.

✅ High Load Capacity: Designed to handle heavy axial loads efficiently, ensuring durability and reliable performance under tough conditions.
✅ Self-Aligning Design: Automatically adjusts to shaft misalignments, reducing stress and prolonging bearing lifespan.
✅ Enhanced Material Strength: Made from robust materials, offering excellent resistance to wear and deformation for extended service life.
✅ Optimal Lubrication Capability: Supports superior lubricant retention, minimizing friction and enabling smooth, long-lasting operation.

29300 Series Thrust Style Spherical Roller Bearings
