29324 E – 29300 Series Thrust Style Spherical Roller Bearings

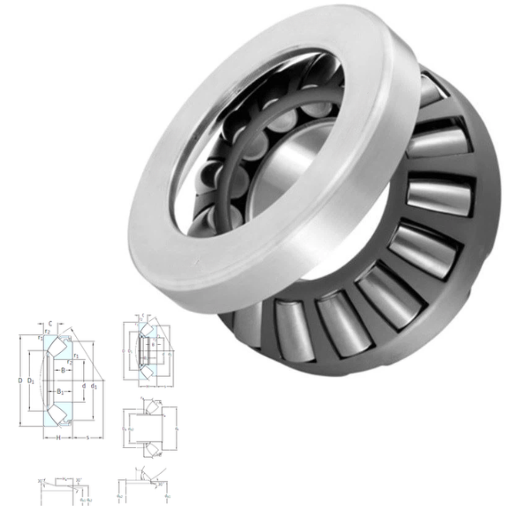

29317 E - 29300 Series Thrust Style Spherical Roller Bearings

The 29324 E - 29300 Series Thrust Spherical Roller Bearings are specially constructed to take on demanding axial loads of high-performance applications. In addition, the unique internal structure of the bearing allows for the achievement of maximal rotor and machine component separation, thus allowing multi-directional motion even with minimal clearances.

29324E interchange SKF 29324E
29324E cross reference SKF 29324E
29324E Equivalent bearing interchange guide:
Price:enquiry
Model Number:29324E

Explore the 29324 E - 29300 Series Thrust Style Spherical Roller Bearings Catalogue

B34 mm
H54 mm
s70 mm
d120 mm
D210 mm
C27 mm
D1155 mm
B148,2 mm
d1188 mm
Weight7,35 Kg
r1 min.2,1 mm
r2 min.2,1 mm
ra max.2 mm
da min.160 mm
Da max.181 mm
db2 max.128 mm
db1 max.128 mm
Size (mm)120x210x27
Width (mm)27
Bearing number29324E
Limiting speed2800 r/min
Reference speed1700 r/min
Bore Diameter (mm)120
Outer Diameter (mm)210
Fatigue load limit (Pu)245
Basic dynamic load rating (C)765 kN
Basic static load rating (C0)2120 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 29324 E Bearings

Power and construction machines as well as vessels of the marine industry stand to benefit from the provided efficiency as advertisement and marketing of novel technologies gain momentum globally. Amigo, as the the supplier and distributor of China, brings internationally certified quality bearings within reach of the local consumers. This series has become the go to choice for the clients with demanding application thanks to its unmatched capacity capabilities along with affordable price.

✅ High Load Capacity: Designed to handle heavy axial loads, ensuring reliable performance in demanding industrial applications.
✅ Self-Aligning Capability: Compensates for shaft misalignment, reducing wear and extending equipment lifespan.
✅ Robust Design: Built with durable materials that ensure longevity and resistance to tough operating conditions.
✅ Efficient Performance: Optimized for low friction, increasing operational efficiency and reducing energy consumption.
