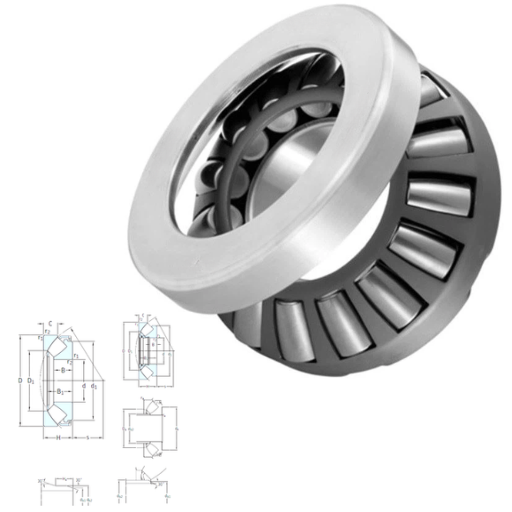

29318 E – 29300 Series Thrust Style Spherical Roller Bearings

29318 E - 29300 Series Thrust Style Spherical Roller Bearings

The Thrust Style Spherical Roller Bearings 29318 E - 29300 Series are bearings of the highest standard and sophisticated design to support significant axial loads, while accommodating some degree of misalignment. Like all Amigo products, these bearings are made using high grade raw material and therefore have a high wear resistance and a long lifespan. These bearings operate under a great deal of pressure whilst maintaining precision during operation.

29318E interchange SKF 29318E
29318E cross reference SKF 29318E
29318E Equivalent bearing interchange guide:
Price:enquiry
Model Number:29318E

Explore the 29318 E - 29300 Series Thrust Style Spherical Roller Bearings Catalogue

B24,5 mm
H39 mm
s53 mm
d90 mm
D155 mm
C19,5 mm
D1115 mm
B134,5 mm
d1138 mm
Weight2,85 Kg
r1 min.1,5 mm
r2 min.1,5 mm
ra max.1,5 mm
da min.120 mm
Da max.134 mm
db2 max.95 mm
db1 max.95 mm
Size (mm)90x155x19.5
Width (mm)19,5
Bearing number29318E
Limiting speed4000 r/min
Reference speed2400 r/min
Bore Diameter (mm)90
Outer Diameter (mm)155
Fatigue load limit (Pu)132
Basic dynamic load rating (C)400 kN
Basic static load rating (C0)1080 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 29318 E Bearings

As leading suppliers of industrial equipment in the region, Amigo is well known for delivering the best quality 29318 E – 29300 Series Thrust Style Spherical Roller Bearings. Not only is Amigo renowned as a specialist for 29318 E – 29300 Series, but also for their efficiency in machinery, construction devices and power generators.

✅ Durable Design: Engineered for demanding applications, ensuring extended service life and high reliability under heavy loads.
✅ Superior Load Capacity: Effectively supports axial loads while accommodating minor shaft misalignment, improving operational efficiency.
✅ Efficient Performance: Reduces friction and heat generation, promoting smoother operation and optimized energy usage.
✅ Precision Engineering: Manufactured to exacting standards for high stability and consistent performance in challenging environments.

29300 Series Thrust Style Spherical Roller Bearings
