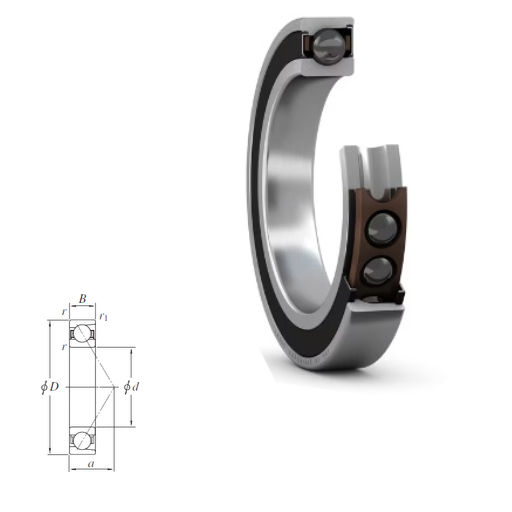

7026CTDULP4 – 7000 Series Light Duty Super Precision Angular Contact Ball Bearings

7026CTDULP4

7026CTDULP4 - 7000 Series Light-Duty Super Precision Angular Contact Ball Bearings offer ultra-high degrees of accuracy and dependable performance. Having been made for critical industrial applications, their acceptance guarantees smooth operation and stability under light loads. A technical background builds bearing durability, precision, and reliability to meet specialized and highly demanding operations.

7026 interchange KOYO 7026
7026 cross reference KOYO 7026
7026 Equivalent bearing interchange guide:
Price:enquiry
Model Number:7026

Explore the 7026CTDULP4 - 7000 Series Light Duty Super Precision Angular Contact Ball Bearings Catalogue

a64,1 mm
d130 mm
D200 mm
B33 mm
C33 mm
Weight3,43 Kg
r min.2 mm
da min.140 mm
ra max.2 mm
Da max.190 mm
r1 min.1 mm
Size (mm)130x200x33
Width (mm)33
Bearing number7026
Bore Diameter (mm)130
Outer Diameter (mm)200
(Grease) Lubrication Speed3500 r/min
Basic dynamic load rating (C)117 kN
Basic static load rating (C0)125 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

What Are Super Precision Bearings?

Super precision bearings are highly engineered components designed to deliver exceptional performance in demanding applications that require precision, reliability, and efficiency. These bearings are utilized in industries such as...

Why Choose Our 7026CTDULP4 Bearings

AMIGO 7026CTDULP4 – 7000 Series Light Duty Super Precision Angular Contact Ball Bearings, complete with super accuracy and smooth operations, are designed for critical operations in industry. They permit smooth, efficient functioning and stability under light loads. Highly engineered, these bearings supply high precision, strength, and dependability in response to specific needs with unyielding high-quality performance.

Exceptional Precision: AMIGO 7026CTDULP4 Bearings deliver accurate performance for critical industrial applications.
Smooth and Stable Operations: Provide reliable functionality under light loads.
Advanced Engineering Excellence: Offers high durability, precision, and efficiency.
Versatile Industrial Applications: Meet specialized and demanding operational needs.
