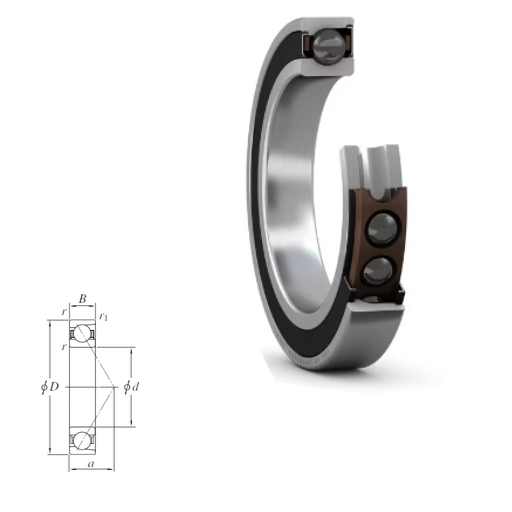

7022CTDULP4 – 7000 Series Light Duty Super Precision Angular Contact Ball Bearings

7022CTDULP4

The 7022CTDULP4 - 7000 Series Light Duty Super Precision Angular Contact Ball Bearings deliver the best precision and reliability. Bearing in critical tasks under light loads would perform a smooth, steady operation. With the advancement of technology, these bearings provide super precision, durability, and reliability, which would address the extreme requirements of industrial applications with steady, impeccable performance.

7022 interchange KOYO 7022
7022 cross reference KOYO 7022
7022 Equivalent bearing interchange guide:
Price:enquiry
Model Number:7022

Explore the 7022CTDULP4 - 7000 Series Light Duty Super Precision Angular Contact Ball Bearings Catalogue

a54,4 mm
d110 mm
D170 mm
B28 mm
C28 mm
Weight2,14 Kg
r min.2 mm
da min.120 mm
ra max.2 mm
Da max.160 mm
r1 min.1 mm
Size (mm)110x170x28
Width (mm)28
Bearing number7022
Bore Diameter (mm)110
Outer Diameter (mm)170
(Grease) Lubrication Speed4200 r/min
Basic dynamic load rating (C)91,9 kN
Basic static load rating (C0)92,8 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

What Are Super Precision Bearings?

Super precision bearings are highly engineered components designed to deliver exceptional performance in demanding applications that require precision, reliability, and efficiency. These bearings are utilized in industries such as...

Why Choose Our 7022CTDULP4 Bearings

AMIGO 7022CTDULP4 – 7000 Series Light-Duty Super-Precision Angular Contact Ball Bearings guarantee outstanding precision and performance. They cater to specialized applications, allowing for smooth and efficient functioning under light loads and providing stability. Technologically advanced, these bearings ensure excellent precision, strength, and longevity, satisfying alternative industrial requirements with consistent and superior performance.

Exceptional Accuracy: AMIGO 7022CTDULP4 Bearings deliver precise performance in critical applications.
Reliable Light-Duty Functionality: Provides smooth, stable operations under light loads.
Advanced Engineering: Ensures durability, reliability, and efficiency.
Industrial Adaptability: Ideal for specialized and demanding tasks.
