7017CTDULP4 – 7000 Series Light Duty Super Precision Angular Contact Ball Bearings

7017 CTDULP4

7017CTDULP4 - The 7000 Series of Light Duty Super Precision Angular Contact Ball Bearings stands in perfect balance for extremely high precision, durability, and reliability. Designed for light-duty applications, these bearings promise accurate results and consistent working efficiency. Their modern design permits less friction, enhanced wear-resistance, and prolonged working life. In high-precision applications, 7017CTDULP4 bearings remain efficient and highly reliable. AMIGO offers expertly manufactured solutions to be depended upon for varied industrial requirements.

7017C interchange KOYO 7017C
7017C cross reference KOYO 7017C
7017C Equivalent bearing interchange guide:
Price:enquiry
Model Number:7017C

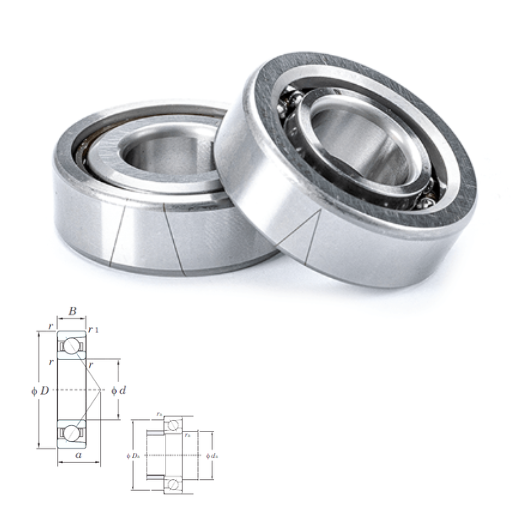

Explore the 7017CTDULP4 - 7000 Series Light Duty Super Precision Angular Contact Ball Bearings Catalogue

D130 mm
d85 mm
B22 mm
C22 mm
a25.5 mm
Weight0.970 Kg
r min.1.1 mm
Da max.123 mm
ra max.1 mm
r1 min.0.6 mm
da min.92 mm
Size (mm)85x130x22
Width (mm)22
Bearing number7017C
Bore Diameter (mm)85
Outer Diameter (mm)130
(Oil) Lubrication Speed10000 r/min
(Grease) Lubrication Speed7600 r/min

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

What Are Super Precision Bearings?

Super precision bearings are highly engineered components designed to deliver exceptional performance in demanding applications that require precision, reliability, and efficiency. These bearings are utilized in industries such as...

Why Choose Our 7017CTDULP4 Bearings

Made with extreme precision, durability, and reliability, 7017CTDULP4 bearings 7000 series light-duty super-precision angular-contact ball bearings for light-duty applications that ensure accuracy and consistent performance. These bearings are engineered to minimize friction while maximizing resistance to wear, thus offering greater service life. Bearing 7017CTDULP4 is best suited for applications where precision is the primary concern, as it provides high efficiency and quality. Industries requiring reliable solutions for various applications can benefit from the solutions offered by AMIGO.

High Precision and Reliability: 7017CTDULP4 Bearings deliver accurate results and dependable performance for light-duty applications.
Advanced Engineering Advantages: Minimizes friction, enhances wear resistance, and ensures extended operational life.
Optimized for Precision Tasks: Ideal for tasks requiring consistent accuracy and top performance.
Trusted AMIGO Solutions: AMIGO provides expertly crafted bearings to meet diverse industrial requirements.
