231S.907 – Split Style Spherical Roller Bearings

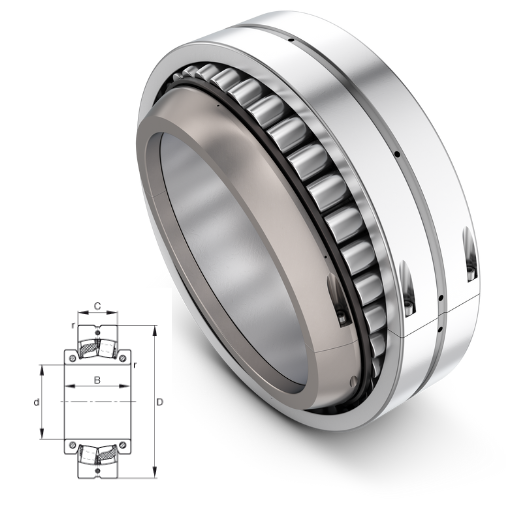

231S.907 - Split Style Spherical Roller Bearings

Working under heavy loads and in difficult circumstances, 231S.907 Split Style Spherical Roller Bearings are manufactured to provide highest performance and durability. Bearing installation and maintenance are simplified due to the novel split design, which causes reduction in downtimes and improvement in operational efficiency. Excellent in handling radial and axial loads, they find applications in mining, cement, and material handling sectors.

231S.907 interchange FAG 231S.907
231S.907 cross reference FAG 231S.907
231S.907 Equivalent bearing interchange guide:
Price:enquiry
Model Number:231S.907

Explore the 231S.907 - Split Style Spherical Roller Bearings Catalogue

m127 kg / Weight
e0,3
d9 7/16 inch
D440 mm
C144 mm
B210 mm
Size (mm)239.713x440x144
Width (mm)144
nG580 1/min / Limiting speed
Y02,23
Y23,39
Y12,28
Mi120 Nm / Tightening torque per clamping screw
Cr1860000 N / Dynamic load rating (radial)
C0r3050000 N / Static load rating (radial)
Cur218000 N / Fatigue limit load, radial
Bearing number231S.907
rmin4 mm
Fa max32000 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)239,713
Outer Diameter (mm)440

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 231S.907 Bearings

With its state-of-the-art production technology, Amigo produces bearings in conformity with international standards of quality, awesomely reliable, and renown for their extended life. Therefore, whether for any robust engineering needs while facing heavy-duty industrial applications or just using easier-to-maintain components to improve your operational system, Amigo’s 231S.907 bearings give you value for your money.

✅ Ease of Installation: Simplifies maintenance tasks due to its split design, minimizing downtime and labor requirements.
✅ Durable Performance: Built to handle heavy loads and harsh operating conditions, ensuring reliability and reduced replacements.
✅ Enhanced Accessibility: Allows direct shaft mounting without disassembly of surrounding components, improving operational efficiency.
✅ Cost-Effective Solution: Reduces overall maintenance costs by eliminating complex removal processes and extending service life.
