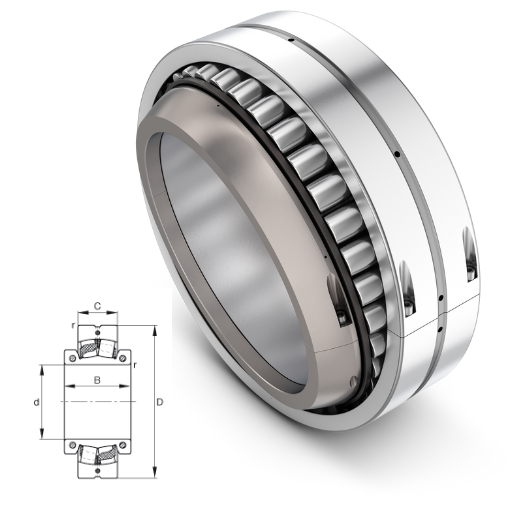

231S.1300 – Split Style Spherical Roller Bearings

231S.1300 - Split Style Spherical Roller Bearings

With the ability to easily install and function reliably, the 231S.1300 Split Style Spherical Roller-Bearings are a unique concept. These bearings, with precision manufacturability, are suitable for applications wherein changing standard bearings becomes difficult due to complex assemblies or an inaccessible site. The split style design enables installation quickly and efficiently, thereby significantly reducing downtime and maintenance costs.

231S.1300 interchange FAG 231S.1300
231S.1300 cross reference FAG 231S.1300
231S.1300 Equivalent bearing interchange guide:
Price:enquiry
Model Number:231S.1300

Explore the 231S.1300 - Split Style Spherical Roller Bearings Catalogue

m288 kg / Weight
e0,3
d13 inch
D600 mm
C192 mm
B270 mm
Size (mm)330.2x600x192
Width (mm)192
nG360 1/min / Limiting speed
Y02,2
Y23,34
Y12,25
Mi295 Nm / Tightening torque per clamping screw
Cr3900000 N / Dynamic load rating (radial)
C0r6800000 N / Static load rating (radial)
Cur410000 N / Fatigue limit load, radial
Bearing number231S.1300
rmin5 mm
Fa max60000 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)330,2
Outer Diameter (mm)600

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 231S.1300 Bearings

Amigo, a reputed supplier in China, provides high-quality 231S.1300 bearings designed for durability and superior load handling capacity. These bearings are adept at handling radial as well as axial loads in a demanding environment to ensure smooth functioning of situations like mining, material handling, and heavy machinery. With an emphasis on both performance and reliability, Amigo 231S.1300 bearings are permanent favorites among buyers with their performance and efficiency enhancements.

✅ Easy Installation: Minimizes downtime with simple assembly and reduced need for complex disassembly of surrounding equipment.
✅ Enhanced Durability: Robust design ensures reliable performance even under high loads and harsh operating conditions.
✅ Maintenance Efficiency: Simplifies inspection and lubrication processes, reducing overall maintenance time and costs.
✅ Versatile Compatibility: Adaptable to various applications, offering reliable operation across different industrial environments.
