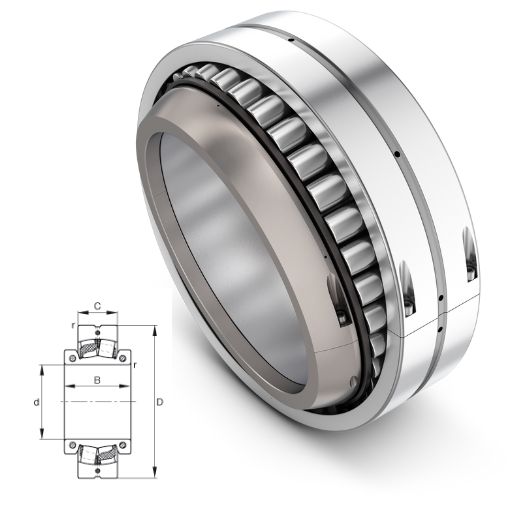

230S.900 – Split Style Spherical Roller Bearings

230S.900 - Split Style Spherical Roller Bearings

230S.900 Series: Split-Type Spherical Roller Bearings are created to ensure optimum performance and maximum ease of application in heavy-duty cases. These bearings allow easy installation and maintenance without shaft disassembly, thereby considerably reducing downtime and labor costs. As top-grade bearings, manufactured with precision by Amigo, a renowned name in bearing technology, these features of durability, dependability, and performance under demanding conditions are widely acknowledged throughout China.

230S.900 interchange FAG 230S.900
230S.900 cross reference FAG 230S.900
230S.900 Equivalent bearing interchange guide:
Price:enquiry
Model Number:230S.900

Explore the 230S.900 - Split Style Spherical Roller Bearings Catalogue

H3048.900
e0,23
m52,8 kg / Weight
d9 inch
D360 mm
C92 mm
B160 mm
Size (mm)228.6x360x92
Width (mm)92
SNP3048.900Designation, adapter sleeve, US design
Cr1100000 N / Dynamic load rating (radial)
Y12,9
Y24,31
Y02,83
nG730 1/min / Limiting speed
Mi120 Nm / Tightening torque per clamping screw
Ma35 Nm / Tightening torque per clamping screw
C0r1830000 N / Static load rating (radial)
Cur152000 N / Fatigue limit load, radial
Bearing number230S.900
rmin3 mm
Fa max32000 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)228,6
Outer Diameter (mm)360

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230S.900 Bearings

Some of the principal features are high load-carrying capacity, self-alignment to adjust for shaft misalignments, and resistance to wear and damage from a harsh environment. The 230S.900 Split Style Spherical Roller Bearings give greater efficiency and long life irrespective of mining, construction, or power generation industries. The bearings, with knowledge and assurance in quality from Amigo, are defensibly chosen to boost operational productivity and cut down on maintenance costs.

✅ Easy Installation: Simplified assembly process minimizes downtime, ideal for challenging or tight working spaces.
✅ High Load Capacity: Designed to handle heavy radial and axial loads, ensuring long-lasting durability and performance.
✅ Versatile Design: Suitable for diverse industrial applications, providing flexibility and adaptability across various operations.
✅ Enhanced Maintenance: Split design enables easier inspection and replacements, reducing maintenance costs and improving efficiency.

Split Style Spherical Roller Bearings
