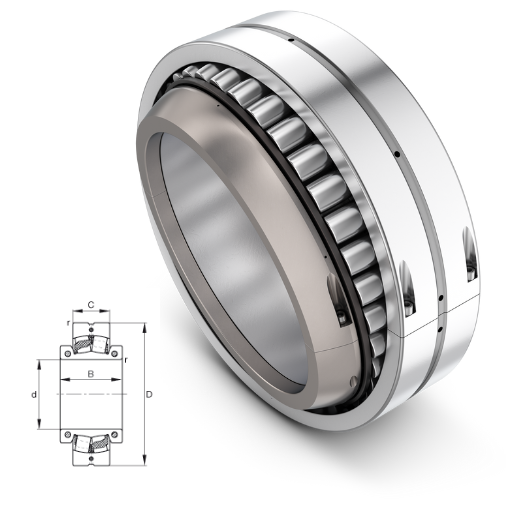

230S.508-MA – Split Style Spherical Roller Bearings

230S.508-MA - Split Style Spherical Roller Bearings

The 230S.508-MA split style spherical roller bearing from Amigo is a kind of eminently reliable and durable bearing solution. Manufactured with precision engineering, it provides an ideal solution for installations that need less complex installation and maintenance processes, making it better at reducing downtime and operational costs. The advanced spherical roller design allows for the best radial and axial load distribution, while in operation, they produce very little friction.

230S.508-MA interchange FAG 230S.508-MA
230S.508-MA cross reference FAG 230S.508-MA
230S.508-MA Equivalent bearing interchange guide:
Price:enquiry
Model Number:230S.508-MA

Explore the 230S.508-MA - Split Style Spherical Roller Bearings Catalogue

SNP3032.508
d5 1/2 inch
D240 mm
C60 mm
B106 mm
m13,7 kg / Weight
e0,22
Size (mm)139.7x240x60
Width (mm)60
Y03,03
Ma9 Nm / Tightening torque per clamping screw
Mi35 Nm / Tightening torque per clamping screw
nG1130 1/min / Limiting speed
Cr450000 N / Dynamic load rating (radial)
Y24,62
Y13,1
C0r680000 N / Static load rating (radial)
Cur51000 N / Fatigue limit load, radial
Bearing number230S.508-MA
rmin2,1 mm
Fa max13800 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)139,7
Outer Diameter (mm)240

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230S.508-MA Bearings

Known as one of the best brands in 230S.508-MA split style spherical roller bearings from China, Amigo creates a new definition of quality and performance. If you want to reduce maintenance costs, increase reliability, or give high-end performance, the 230S.508-MA will do it all beyond industrial standards. The robust construction of the 230S.508-MA, therefore, enables best resistance against dust, wear, and adverse operating conditions.

✅ Ease of installation: Simplified mounting process reduces downtime and labor required for bearing replacement.
✅ Enhanced durability: Robust design ensures optimal performance under heavy loads and harsh conditions.
✅ Cost-effective maintenance: Split design allows for quick inspections and replacements without disassembling surrounding equipment.
✅ Versatile application: Suitable for a wide range of industrial machinery with varying operational demands.
