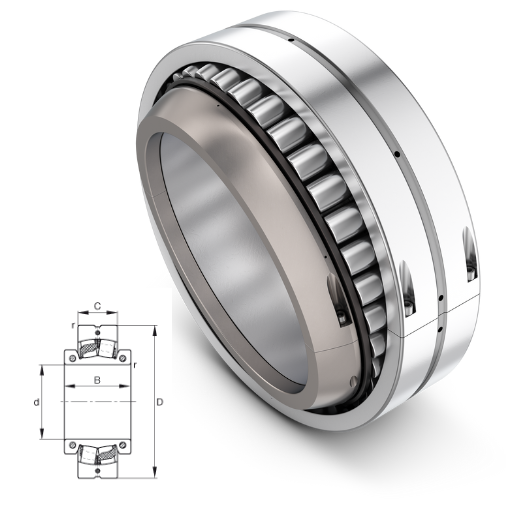

230S.1200 – Split Style Spherical Roller Bearings

230S.1200 - Split Style Spherical Roller Bearings

The 230S.1200 Split Style Spherical Roller Bearings are presented with very creative innovations aimed at high-performance industrial usages. Design-wise, they have been created to adapt to installs and maintenance easily, ensuring that they can anyway be reliable and long-lasting. With a split-type bearing design, they may be replaced under very tight spaces, and thus there are no needs to disassemble any equipment around, which substantially reduces downtime and labor costs.

230S.1200 interchange FAG 230S.1200
230S.1200 cross reference FAG 230S.1200
230S.1200 Equivalent bearing interchange guide:
Price:enquiry
Model Number:230S.1200

Explore the 230S.1200 - Split Style Spherical Roller Bearings Catalogue

H3064HG.1200
e0,23
m96,5 kg / Weight
d12 inch
D480 mm
C121 mm
B186 mm
Size (mm)304.8x480x121
Width (mm)121
SNP3064.1200Designation, adapter sleeve, US design
Cr1860000 N / Dynamic load rating (radial)
Y12,9
Y24,31
Y02,83
nG530 1/min / Limiting speed
Mi120 Nm / Tightening torque per clamping screw
Ma69 Nm / Tightening torque per clamping screw
C0r3200000 N / Static load rating (radial)
Cur255000 N / Fatigue limit load, radial
Bearing number230S.1200
rmin4 mm
Fa max32000 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)304,8
Outer Diameter (mm)480

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230S.1200 Bearings

Amigo, a renowned name amongst the suppliers in China, offers the very best 230S.1200 Split Style Spherical Roller Bearings made with precision and utmost quality materials. These bearings can suffice in all constraints with heavy-duty radial and axial load capabilities, thus serving heavy industries such as mining, steel, and power generation. Choose Amigo for dependable and most effective spherical roller bearings solutions.

✅ Durability – Engineered for heavy-duty applications, ensuring a long-lasting and reliable performance under extreme conditions.
✅ Ease of Maintenance – Split design simplifies installation and maintenance, reducing downtime and operational costs significantly.
✅ Versatility – Accommodates misalignment and heavy loads, offering exceptional performance across diverse industrial applications.
✅ Efficiency – Optimized design minimizes friction and energy consumption, enhancing operational productivity and overall system efficiency.
