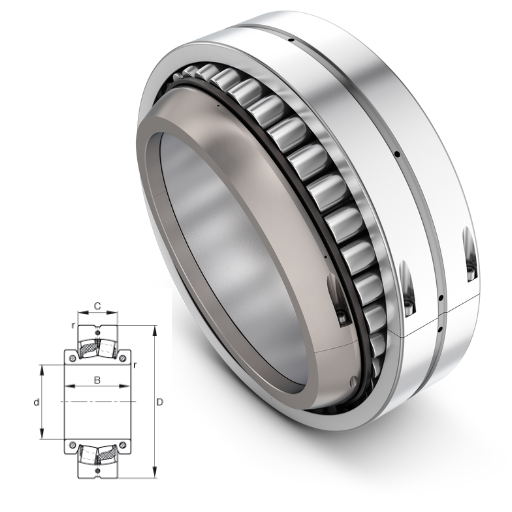

230S.1100 – Split Style Spherical Roller Bearings

230S.1100 - Split Style Spherical Roller Bearings

These 230S.1100 Split Style Spherical Roller Bearings are designed for easy installation and excellent performance in heavy-duty applications. Precisely engineered, these bearings have a split design for easy mounting and maintenance, which minimizes downtime and labor costs. The split construction is beneficial in applications where shafts are difficult to access or disassemble. Therefore, it is fitting for machinery used in mining, steel, and power generation industries.

230S.1100 interchange FAG 230S.1100
230S.1100 cross reference FAG 230S.1100
230S.1100 Equivalent bearing interchange guide：
Price：enquiry
Model Number：230S.1100
INSTANT QUOTE
Download 230S.1100 PDF

Explore the 230S.1100 - Split Style Spherical Roller Bearings Catalogue

H3060.1100
e0,22
m91,7 kg / Weight
d11 inch
D460 mm
C118 mm
B176 mm
Size (mm)279.4x460x118
Width (mm)118
SNP3060.1100Designation, adapter sleeve, US design
Cr1600000 N / Dynamic load rating (radial)
Y13,04
Y24,53
Y02,97
nG590 1/min / Limiting speed
Mi120 Nm / Tightening torque per clamping screw
Ma69 Nm / Tightening torque per clamping screw
C0r2800000 N / Static load rating (radial)
Cur228000 N / Fatigue limit load, radial
Bearing number230S.1100
rmin4 mm
Fa max32000 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)279,4
Outer Diameter (mm)460

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230S.1100 Bearings

Manufactured as per stringent quality parameters in China, the 230S.1100 bearing has an outstanding capacity to bear loads and accommodate misalignments. They are designed to offer the utmost reliability while functioning under abnormal environments with a high resistance to wear and stress. Bearing the fullest commitment to quality and advancement, these bearings by Amigo are definitely the technician’s first choice if they are considering efficiency with a combination of long performance.

✅ Easy Installation: Designed for simplified assembly, reducing downtime and labor costs during maintenance or replacements.
✅ High Load Capacity: Efficiently handles both radial and axial loads, ensuring reliable performance in demanding applications.
✅ Durable Construction: Built with premium materials to withstand tough operating environments and prolong operational life.
✅ Versatile Application: Suitable for various industries, handling misalignment with precision in dynamic conditions.
