230S.1000 – Split Style Spherical Roller Bearings

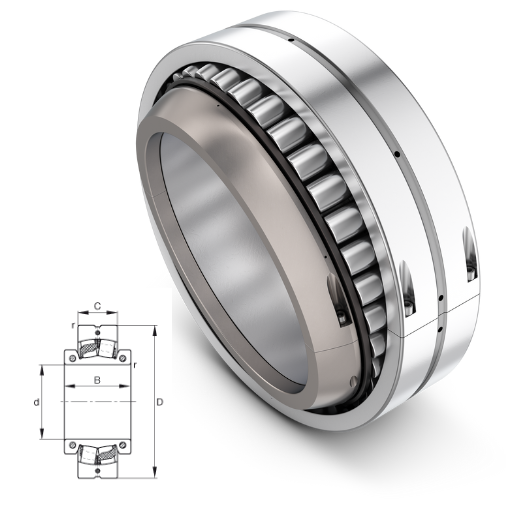

230S.1000 - Split Style Spherical Roller Bearings

230S.1000 Split Style Spherical Roller Bearings have been designed with superior performance and durability in mind for applications across industries. These bearings are accurately made to ease installation and maintenance, thereby becoming an ideal fit for the minimization of downtime and enhancement in operational efficiency. The split-type configuration allows for mounting on existing shafts without dismantling of complex equipment.

230S.1000 interchange FAG 230S.1000
230S.1000 cross reference FAG 230S.1000
230S.1000 Equivalent bearing interchange guide：
Price：enquiry
Model Number：230S.1000
INSTANT QUOTE
Download 230S.1000 PDF

Explore the 230S.1000 - Split Style Spherical Roller Bearings Catalogue

H3056.1000
e0,23
m71,2 kg / Weight
d10 inch
D420 mm
C106 mm
B170 mm
Size (mm)254x420x106
Width (mm)106
SNP3056.1000Designation, adapter sleeve, US design
Cr1460000 N / Dynamic load rating (radial)
Y12,95
Y24,4
Y02,89
nG620 1/min / Limiting speed
Mi120 Nm / Tightening torque per clamping screw
Ma35 Nm / Tightening torque per clamping screw
C0r2450000 N / Static load rating (radial)
Cur200000 N / Fatigue limit load, radial
Bearing number230S.1000
rmin4 mm
Fa max32000 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)254
Outer Diameter (mm)420

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230S.1000 Bearings

Amigo, a trusted name in bearing industry in China, is proud to offer top-quality 230S.1000 Split Style Spherical Roller Bearings. Amigo has provided advanced engineering, combined with tight quality control, to present a product that meets international standards and gives excellent value to its customers worldwide. For your needs of higher load handling or lesser maintenance, the Amigo 230S.1000 bearings provide a scholarly solution.

✅ Easy Installation: Simplifies maintenance by reducing downtime and eliminating the need for shaft disassembly.
✅ Durable Design: Withstands heavy loads and harsh conditions for extended service life and reliability.
✅ Versatile Compatibility: Fits a wide range of applications and adapts to varying shaft alignment needs.
✅ Cost Efficiency: Minimizes replacement and labor costs through enhanced longevity and simplified installation process.
