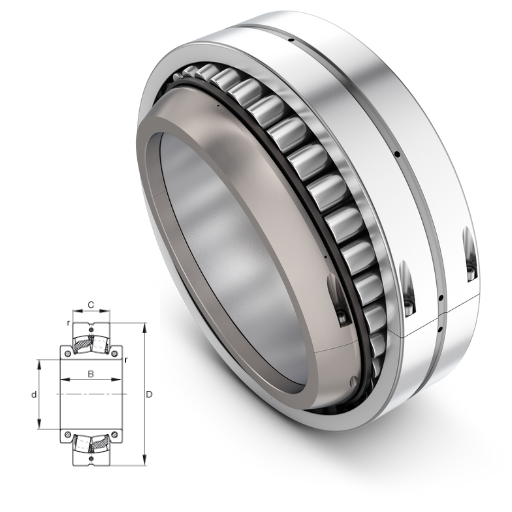

222S.508 – Split Style Spherical Roller Bearings

222S.508 - Split Style Spherical Roller Bearings

The 222S.508 Split Style Spherical Roller Bearings are precision-engineered components designed to deliver superior performance and durability across various industrial applications. This innovative bearing design simplifies installation and maintenance, thanks to its split style construction, making it an ideal solution for reducing downtime in demanding environments.

222S.508 interchange FAG 222S.508
222S.508 cross reference FAG 222S.508
222S.508 Equivalent bearing interchange guide：
Price：enquiry
Model Number：222S.508
INSTANT QUOTE
Download 222S.508 PDF

Explore the 222S.508 - Split Style Spherical Roller Bearings Catalogue

H3132.508
e0,25
C80 mm
m29,8 kg / Weight
B124 mm
d5 1/2 inch
D290 mm
SNV290Designation, plummer block housing
SNW32.508Designation, adapter sleeve, US design
Size (mm)139.7x290x80
Width (mm)80
nG1020 1/min / Limiting speed
Ma35 Nm / Tightening torque per clamping screw
Mi69 Nm / Tightening torque per clamping screw
Y02,63
Y24
Y12,69
Cr850000 N / Dynamic load rating (radial)
C0r1200000 N / Static load rating (radial)
Cur83000 N / Fatigue limit load, radial
Bearing number222S.508
rmin3 mm
Fa max22200 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)139,7
Outer Diameter (mm)290

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 222S.508 Bearings

Manufactured by Amigo, one of China’s leading providers of advanced bearing solutions, the 222S.508 series is built with high-quality materials and cutting-edge technology to ensure optimal load-carrying capacity and resistance to wear and tear. These bearings are perfect for applications with heavy radial and axial loads, offering excellent alignment capabilities for enhanced reliability and longevity.

✅ Easy Installation: Simplified mounting process reduces downtime and maintenance effort in complex or tight spaces.
✅ Enhanced Durability: Designed to withstand high loads and harsh environments, ensuring reliable performance over time.
✅ High Adaptability: Suitable for accommodating misalignment and shaft deflection in a variety of industrial applications.
✅ Cost Efficiency: Reduces overall operation costs by minimizing equipment downtime and extending bearing lifespan.
