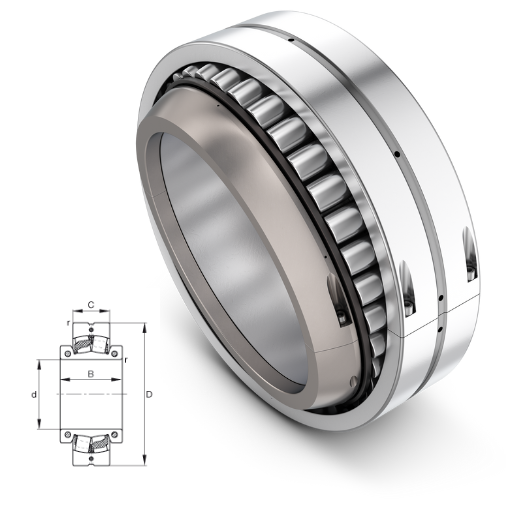

222S.507 – Split Style Spherical Roller Bearings

222S.507 - Split Style Spherical Roller Bearings

An innovative working component is designed for demanding applications in various industries across the Amigo manufacture with precise dimensions; this product ensures durability, reliability, and ease of installation in the maintenance phase. Its split-style design makes maintenance and replacement easy, reducing downtime and interruptions in operational activities.

222S.507 interchange FAG 222S.507
222S.507 cross reference FAG 222S.507
222S.507 Equivalent bearing interchange guide:
Price:enquiry
Model Number:222S.507

Explore the 222S.507 - Split Style Spherical Roller Bearings Catalogue

H3132.507
e0,25
C80 mm
m30 kg / Weight
B124 mm
d5 7/16 inch
D290 mm
SNV290Designation, plummer block housing
SNW32.507Designation, adapter sleeve, US design
Size (mm)138.113x290x80
Width (mm)80
nG1020 1/min / Limiting speed
Ma35 Nm / Tightening torque per clamping screw
Mi69 Nm / Tightening torque per clamping screw
Y02,63
Y24
Y12,69
Cr850000 N / Dynamic load rating (radial)
C0r1200000 N / Static load rating (radial)
Cur83000 N / Fatigue limit load, radial
Bearing number222S.507
rmin3 mm
Fa max22200 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)138,113
Outer Diameter (mm)290

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 222S.507 Bearings

With the capacity to bear heavy loads, the 222S.507 unit is at its best where shock loads and misalignments exist. Construction with high-quality materials ensures excellent wear resistance, while the spherical design allows for angular deviations, ensuring smooth operation. From mining to construction to heavy machinery, it is an exemplary bearing for use in the toughest working conditions.

✅ Simplified Installation: Reduces downtime and labor costs with an easy-to-install split design.
✅ Enhanced Durability: Designed to handle heavy loads and misalignment for extended service life.
✅ Operational Efficiency: Minimizes maintenance requirements, ensuring consistent performance in demanding conditions.
✅ Versatile Applications: Suitable for various industries, including mining, steel, and power generation.

Split Style Spherical Roller Bearings
