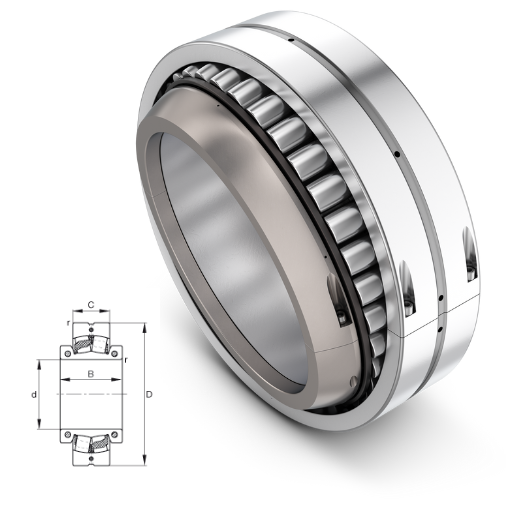

222S.507-MA – Split Style Spherical Roller Bearings

222S.507-MA - Split Style Spherical Roller Bearings

The 222S.507-MA - Split Style Spherical Roller Bearings are the latest in the evolution of those needing efficient load handling and ease of installation. Machined-to-spec and using the finest materials, these 222S.507-MA - Split Style Spherical Roller Bearings are designed for use in situations with heavy radial and moderate axial load. The bearings are usable in mining, steel, paper-making, and power-generating industries.

222S.507-MA interchange FAG 222S.507-MA
222S.507-MA cross reference FAG 222S.507-MA
222S.507-MA Equivalent bearing interchange guide：
Price：enquiry
Model Number：222S.507-MA
INSTANT QUOTE
Download 222S.507-MA PDF

Explore the 222S.507-MA - Split Style Spherical Roller Bearings Catalogue

H3132.507
e0,25
C80 mm
m31,1 kg / Weight
B124 mm
d5 7/16 inch
D290 mm
SNV290Designation, plummer block housing
SNW32.507Designation, adapter sleeve, US design
Size (mm)138.113x290x80
Width (mm)80
nG1020 1/min / Limiting speed
Ma35 Nm / Tightening torque per clamping screw
Mi69 Nm / Tightening torque per clamping screw
Y02,63
Y24
Y12,69
Cr780000 N / Dynamic load rating (radial)
C0r1060000 N / Static load rating (radial)
Cur74000 N / Fatigue limit load, radial
Bearing number222S.507-MA
rmin3 mm
Fa max22200 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)138,113
Outer Diameter (mm)290
