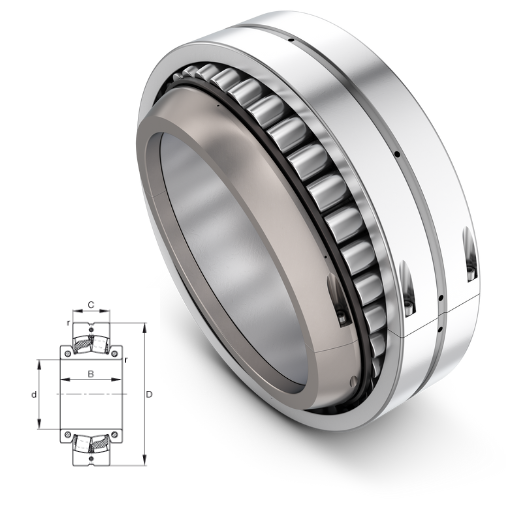

222S.500 – Split Style Spherical Roller Bearings

222S.500 - Split Style Spherical Roller Bearings

222S.500 Split Style Spherical Roller Bearings are intended for high reliability and are meant to deliver excellent performance in harsh service conditions. The split construction bearing allows lifting heavy parts to be installed or replaced without dismantling cumbersome machinery, giving the advantage of reduced downtime.

222S.500 interchange FAG 222S.500
222S.500 cross reference FAG 222S.500
222S.500 Equivalent bearing interchange guide：
Price：enquiry
Model Number：222S.500
INSTANT QUOTE
Download 222S.500 PDF

Explore the 222S.500 - Split Style Spherical Roller Bearings Catalogue

H3128.500
e0,26
C68 mm
m19 kg / Weight
B110 mm
d5 inch
D250 mm
SNV250Designation, plummer block housing
SNW28.500Designation, adapter sleeve, US design
Size (mm)127x250x68
Width (mm)68
nG1170 1/min / Limiting speed
Ma14 Nm / Tightening torque per clamping screw
Mi35 Nm / Tightening torque per clamping screw
Y02,56
Y23,9
Y12,62
Cr630000 N / Dynamic load rating (radial)
C0r880000 N / Static load rating (radial)
Cur60000 N / Fatigue limit load, radial
Bearing number222S.500
rmin3 mm
Fa max13800 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)127
Outer Diameter (mm)250

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 222S.500 Bearings

Amigo stands as a reliable manufacturer of 222S.500 Split Style Spherical Roller Bearings in China. Capable of carrying heavier loads and excellent adaptability to misalignment, these bearings deliver ultimate functionality in industries such as mining, steel, and paper. Made with precision and the best material, 222S.500 finishes off with durability, efficiency, and longer life, gaining worldwide popularity as the first choice for heavy-duty applications.

✅ Easy Installation: Reduces downtime through simple mounting without disassembling surrounding equipment.
✅ Enhanced Durability: Built with premium materials to withstand heavy loads and demanding industrial applications.
✅ Self-Aligning Capability: Compensates for shaft misalignment, ensuring consistent performance and reduced maintenance.
✅ Versatile Design: Adaptable for a variety of machinery, promoting increased operational efficiency and reliability.
