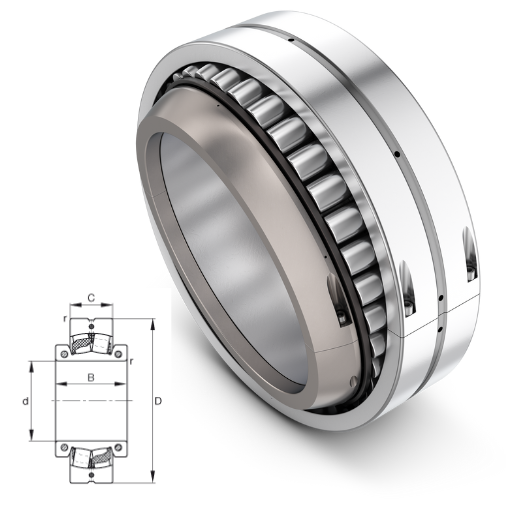

222S.307-MA – Split Style Spherical Roller Bearings

222S.300 - Split Style Spherical Roller Bearings

Spherical roller bearings split style 222S.307-MA enable precision, performance, and exceptionally high-lasting durability even in the most demanding applications. Their split design allows fast installation, easy upkeep, prompt maintenance, and reduced operational downtime. These features together improve business efficiency. These bearings are ideal for industrial environments, built with high-strength materials to easily and effortlessly withstand heavy loads while maintaining consistent, reliable results.

222S.307-MA interchange FAG 222S.307-MA
222S.307-MA cross reference FAG 222S.307-MA
222S.307-MA Equivalent bearing interchange guide：
Price：enquiry
Model Number：222S.307-MA
INSTANT QUOTE
Download 222S.307-MA PDF

Explore the 222S.307-MA - Split Style Spherical Roller Bearings Catalogue

H320.307
e0,23
C46 mm
m6,98 kg / Weight
B76 mm
d3 7/16 inch
D180 mm
SNV180Designation, plummer block housing
SNW20.307Designation, adapter sleeve, US design
Size (mm)87.313x180x46
Width (mm)46
nG1820 1/min / Limiting speed
Ma14 Nm / Tightening torque per clamping screw
Mi14 Nm / Tightening torque per clamping screw
Y02,83
Y24,31
Y12,9
Cr260000 N / Dynamic load rating (radial)
C0r320000 N / Static load rating (radial)
Cur28500 N / Fatigue limit load, radial
Bearing number222S.307-MA
rmin2,1 mm
Fa max7600 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)87,313
Outer Diameter (mm)180

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 222S.307-MA Bearings

Ring AMIGO whenever you need 222S.307-MA Bearings and experience precision, durability, and performance under demanding conditions. This type of split style spherical roller bearing provides ease of installation and maintenance, which reduces operational downtime. These bearings are created to manage persistent heavy and industrial workloads while sharpening economic efficiency as operational workload demands are systematically and reliably met. AMIGO delivers unmatched value and performance for demanding situations requiring dependable solutions.

Superior Durability and Precision: 222S.307-MA Bearings are built to ensure long-lasting performance with exceptional precision in industrial applications.
Quick Installation and Maintenance: The split-style design simplifies installation and maintenance, minimizing downtime and maximizing productivity.
Reliable Load-Bearing Capability: Designed to handle heavy loads reliably, offering consistent results even in demanding environments.
Tailored Industrial Solutions: 222S.307-MA Bearings meet rigorous operational needs with dependable, customized solutions for challenging situations.
