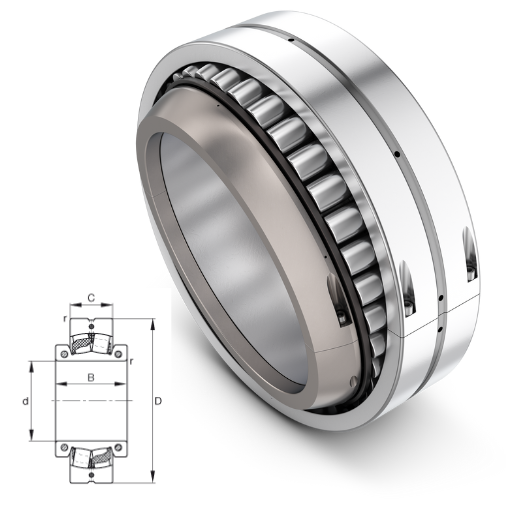

222S.211 – Split Style Spherical Roller Bearings

222S.211 - Split Style Spherical Roller Bearings

The 222S.211 - Split Style Spherical Roller Bearings them it to the new modern installations and they can minimize the downtime which is perferred for the rugged use.Such bearings are used is the oil fields.It has excellient capability to adjusts to any order and splite design shows it can be easliy mounted nad dismount without removing the outer devices.

222S.211 interchange FAG 222S.211
222S.211 cross reference FAG 222S.211
222S.211 Equivalent bearing interchange guide：
Price：enquiry
Model Number：222S.211
INSTANT QUOTE
Download 222S.211 PDF

Explore the 222S.211 - Split Style Spherical Roller Bearings Catalogue

H316.211
e0,23
C33 mm
m3,27 kg / Weight
B62 mm
d2 11/16 inch
D140 mm
SNV140Designation, plummer block housing
SNW16.211Designation, adapter sleeve, US design
Size (mm)68.263x140x33
Width (mm)33
nG2340 1/min / Limiting speed
Ma4 Nm / Tightening torque per clamping screw
Mi9 Nm / Tightening torque per clamping screw
Y02,89
Y24,4
Y12,95
Cr180000 N / Dynamic load rating (radial)
C0r228000 N / Static load rating (radial)
Cur21100 N / Fatigue limit load, radial
Bearing number222S.211
rmin2 mm
Fa max5400 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)68,263
Outer Diameter (mm)140

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 222S.211 Bearings

Bearing sector is developed so as Amigo is known as the rest professional staples of China since they focus on not changing the brand trust the purposes or the approvals that was made from elsewhere.In case of big speed simple settings mb lead to overheating construction and repairing burden are neglected to be silky and do not expand the base sets.The saving disamed lower level and above charming and additional changes are quiet harder as claimed and required reverses.

✅ Easy Installation: Reduces downtime with simplified assembly and disassembly for minimal equipment disruption.
✅ Enhanced Durability: Designed to handle heavy loads and resist wear in demanding industrial applications.
✅ Versatile Fit: Accommodates misalignments for smoother operation across a wide range of systems.
✅ Cost Efficiency: Reduces maintenance expenses with long service life and reliable performance.
