222S.204 – Split Style Spherical Roller Bearings

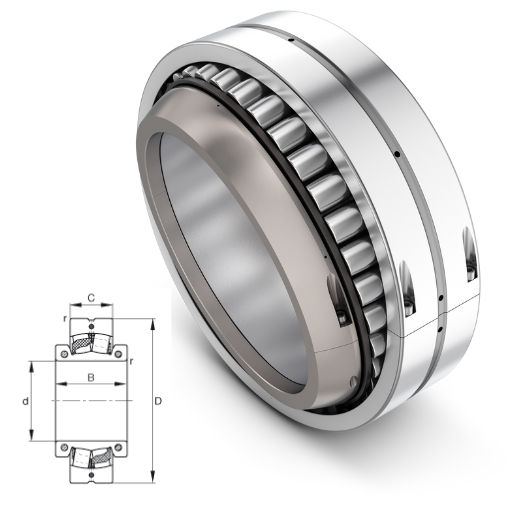

222S.204 - Split Style Spherical Roller Bearings

The 222S.204 Split Style Spherical Roller Bearings have been mastered for accuracy to ensure optimal performance and reliability in industrial applications. These bearings can support substantial radial and axial loads, which makes them useful in industries that need robust machinery with minimal downtimes. The split design offers easier and faster servicing since there is no need to remove equipment that is mounted around the bearing.

222S.204 interchange FAG 222S.204
222S.204 cross reference FAG 222S.204
222S.204 Equivalent bearing interchange guide：
Price：enquiry
Model Number：222S.204
INSTANT QUOTE
Download 222S.204 PDF

Explore the 222S.204 - Split Style Spherical Roller Bearings Catalogue

e0,23
C31 mm
m2,19 kg / Weight
B55 mm
d2 1/4 inch
D120 mm
SNV120Designation, plummer block housing
SNW13.204Designation, adapter sleeve, US design
Size (mm)57.15x120x31
Width (mm)31
nG2850 1/min / Limiting speed
Ma4 Nm / Tightening torque per clamping screw
Mi9 Nm / Tightening torque per clamping screw
Y02,92
Y24,44
Y12,98
Cr137000 N / Dynamic load rating (radial)
C0r156000 N / Static load rating (radial)
Cur15400 N / Fatigue limit load, radial
Bearing number222S.204
rmin1,5 mm
Fa max5400 N / Permissible axial load, for inner ring without axial abutment
Bore Diameter (mm)57,15
Outer Diameter (mm)120

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 222S.204 Bearings

One of the Best, Amigo, a Chinese Manufacturer of bearings responds to this need and other requirements by using advanced materials and engineering technologies to produce the best 222S.204 Split Style Spherical Roller Bearings. These are the split style spherical roller bearings that Amigo offers to the market which are used all over the world in various industries: mining, construction, cement industry, etc.

✅ Easy Installation: Simplifies mounting process, especially in difficult or restricted spaces, saving time and effort.
✅ Enhanced Durability: Designed for high load capacities and reliable performance under demanding conditions.
✅ Versatile Compatibility: Suitable for various industrial applications, ensuring adaptability across different systems.
✅ Low Maintenance: Reduces downtime and operating costs with minimal lubrication requirements and extended service life.
