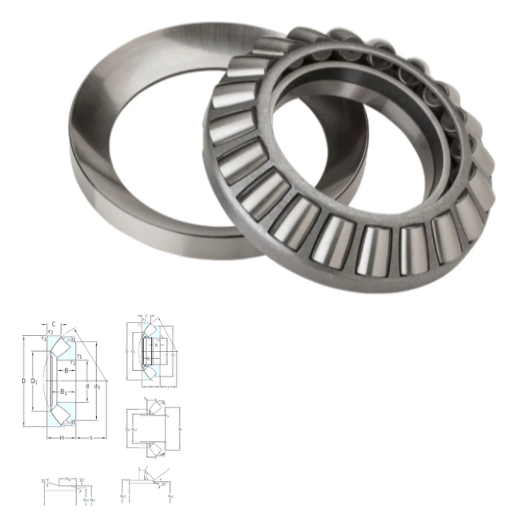

29440 E – 29400 Series Thrust Style Spherical Roller Bearings

29440 E

29440 E - 29400 Series Thrust Style Spherical Roller Bearings are distinguished by their excellent wearability and more exactness. Heavy axial loads in rough industrial applications assure steady and reliable performance. With robust construction and superior design, these bearings work with long-term efficiency. Trust 29440 E Bearings to provide good quality and trusted solutions for demanding operational requirements.

29440E interchange SKF 29440E
29440E cross reference SKF 29440E
29440E Equivalent bearing interchange guide:
Price:enquiry
Model Number:29440E

Explore the 29440 E - 29400 Series Thrust Style Spherical Roller Bearings Catalogue

B77 mm
H122 mm
s122 mm
d200 mm
D400 mm
C59,4 mm
D1278 mm
B1107,1 mm
d1350 mm
Weight72 Kg
r1 min.5 mm
r2 min.5 mm
ra max.4 mm
da min.295 mm
Da max.337 mm
db2 max.234 mm
db1 max.217,5 mm
Size (mm)200x400x59.4
Width (mm)59,4
Bearing number29440E
Limiting speed1600 r/min
Reference speed850 r/min
Bore Diameter (mm)200
Outer Diameter (mm)400
Fatigue load limit (Pu)850
Basic dynamic load rating (C)3200 kN
Basic static load rating (C0)9000 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 29440 E Bearings

Upgrade to the 29440 E-29400 Series Thrust Style Spherical Roller Bearings for The Lost Durability and Precision. They are designed to handle heavy axial loads under harsh environments and are guaranteed to provide lifetime functioning. These bearings are backed by AMIGO’s reliable quality and support, which provide the most efficient solutions.

Exceptional Durability and Precision: Designed for consistent industrial demands.
Handles Heavy Axial Loads: Optimized for strict operational settings.
Reliable, Long-Lasting Performance: Ensures efficiency in challenging applications.
AMIGO’s Trusted Quality and Service: Backed by superior expertise and support.
