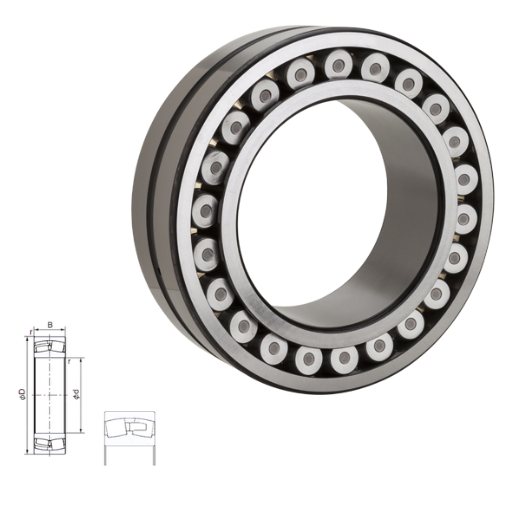

23926 AC/W33 – 23900 Series Spherical Roller Bearings

23926 ACW33 - 23900 Series Spherical Roller Bearings

Being good performers in any tough applications, the series X39 23926 AC/W33 - 23900 Spherical Roller Bearings are demanded for reliability and longevity. The application of the advanced design of the W33 lubrication groove and inlet system ensures the smooth working of the bearing by efficient lubricant distribution even under adverse working conditions.

23926E interchange NACHI 23926E
23926E cross reference NACHI 23926E
23926E Equivalent bearing interchange guide:
Price:enquiry
Model Number:23926E

Explore the 23926 AC/W33 - 23900 Series Spherical Roller Bearings Catalogue

C37 mm
d130 mm
D180 mm
B37 mm
r min.1,5 mm
Weight2,87 Kg
Size (mm)130x180x37
Width (mm)37
Bearing number23926E
Bore Diameter (mm)130
Outer Diameter (mm)180
Calculation factor (e)0,18
(Oil) Lubrication Speed3450 r/min
Calculation factor (Y0)3,58
Calculation factor (Y1)3,66
(Grease) Lubrication Speed2700 r/min
Basic dynamic load rating (C)284 kN
Basic static load rating (C0)355 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23926 AC/W33 Bearings

With a heavy-duty design so as to avoid misalignments, these bearings will endure and reduce wear due to time. They are capable of very well handling industrial applications such as mining, construction, power generation, and heavy machinery operations. Amigo is reputed for high-quality products in China. Using 23926 AC/W33 of Amigo shall guarantee immaculate working and shall take all your machinery to a class higher.

✅ High Load Capacity: Designed to support heavy radial and axial loads, ensuring reliable performance in demanding applications.
✅ Self-Aligning Capability: Accommodates misalignments and shaft deflections, reducing the risk of operational issues.
✅ Durable Construction: Manufactured with robust materials to withstand tough conditions, extending lifespan and minimizing maintenance.
✅ Efficient Lubrication Design: Optimized internal geometry promotes better lubricant flow, enhancing efficiency and reducing wear.

23900 Series Spherical Roller Bearings
