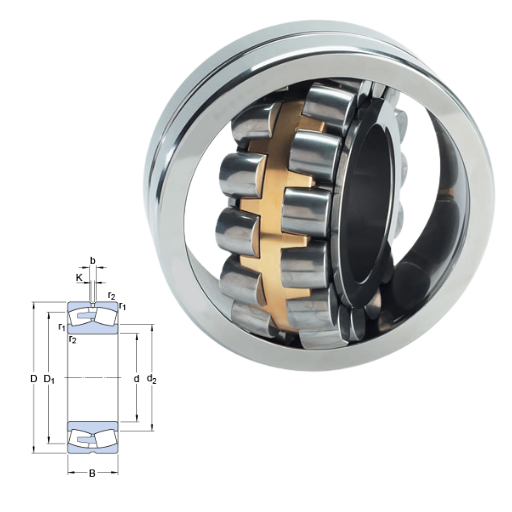

23296 CA/W33 – 23200 Series Spherical Roller Bearings

23296 CAW33 - 23200 Series Spherical Roller Bearings

The 23296 CA/W33 - 23200 Series Spherical Roller Bearings are manufactured precisely to ensure fine performance, great reliability, and durability in heavy-duty industrial applications. These bearings with advanced features such as self-aligning capacity will efficiently accommodate misalignments and shaft deflections and are thus well suited for heavy load conditions.

23296 CA/W33 interchange SKF 23296 CA/W33
23296 CA/W33 cross reference SKF 23296 CA/W33
23296 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23296 CA/W33

Explore the 23296 CA/W33 - 23200 Series Spherical Roller Bearings Catalogue

K12 mm
D870 mm
b22.3 mm
B310 mm
d480 mm
Bore18.898 Inch | 480 Millimeter
NounBearing
Width12.205 Inch | 310 Millimeter
UNSPSC31171510
series:Spherical Roller 232 Series
CategorySpherical Roller Bearing
EnclosureOpen
Size (mm)870x480x310
Inventory0
Width (mm)310
bore type:Straight
application:Heavy Duty
Bore ProfileStraight
Weight / LBS1,927.50
Mass bearing800 kg
Product GroupB04311
Inch - MetricMetric
Cage MaterialBronze
D1741 mm
closure type:Open
d2602 mm
Keyword StringSpherical
Withdrawal NutNot Applicable
overall width:310 mm
cage material:Brass
RelubricatableYes
bore diameter:480 mm
Bearing number23296 CA/W33
Limiting speed530 r/min
Rolling ElementSpherical Roller Bearing
Mounting MethodShaft Mount
Reference speed380 r/min
Long Description480MM Straight Bore; 870MM Outside Diameter; 310MM Width; C0-Medium Clearance; Shaft Mount; Double Row of Spherical Roller Bearings; Bronze Cage Material; Open Enclosure; Relubricatable
outer ring type:Not Split
Outside Diameter34.252 Inch | 870 Millimeter
Manufacturer URLhttp://www.skf.com
outside diameter:870 mm
Withdrawal SleeveNot Applicable
Manufacturer NameSKF
Weight / Kilogram875.09
Internal ClearanceC0-Medium
Bore Diameter (mm)870
ra max.6 mm
Da max.838 mm
da min.512 mm
Outer Diameter (mm)480
internal clearance:C0
Adapter Part NumberNot Applicable Inch | Not Applicable Millimeter
Minimum Buy QuantityN/A
ra - max.6 mm
Da - max.838 mm
Calculation factor e0.35
da - min.512 mm
r1,2 min.7.5 mm
D1 ≈741 mm
d2 ≈602 mm
lubrication hole type:Holes on Outer Ring
r1,2 - min.7.5 mm
Harmonized Tariff Code84823080
Calculation factor - e0.35
Number of Rows of RollersDouble Row
Basic dynamic load rating C9805 kN
operating temperature range:392 Degrees °F
Basic dynamic load rating - C9805 kN
Fatigue load limit Pu950 kN
Calculation factor Y01.8
Calculation factor Y22.9
Calculation factor Y11.9
Calculation factor - Y22.9
Fatigue load limit - Pu950 kN
Calculation factor - Y01.8
Calculation factor - Y11.9
Basic static load rating C015000 kN
Basic static load rating - C015000 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23296 CA/W33 Bearings

Made from steel of premium quality and designed with the innovative CA cages, the 23296 CA/W33 ensures maximum load-carrying capacity and heat dissipation. The W33 indicates lubrication grooves and holes from the outer ring side to facilitate lubrication, thus reducing the need of maintenance. They are employed in extremely tough working conditions and find applications in the mining, paper mill, construction, and heavy machinery sectors.

✅ High Load Capacity: Designed to handle heavy radial and axial loads, ensuring durability in demanding applications.
✅ Self-Aligning Design: Accommodates misalignment, reducing stress on the bearing and improving operational efficiency.
✅ Optimized Internal Geometry: Enhances load distribution for extended service life and reliable performance.
✅ Reliable Lubrication Management: Ensures smooth operation and minimizes maintenance requirements, boosting overall system productivity.
